Home> 探花精选> Rolled Ball Screws> 32mm Diameter Rolled Ball Screw> High-load CNC Rolled Ball Screw and Nut
High-load CNC Rolled Ball Screw and Nut
High-load CNC Rolled Ball Screw and Nut

High-load CNC Rolled Ball Screw and Nut

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Zhoushan,Dalian
Contact Us

  • $19.99-109.99 /Piece/Pieces

Sample:
$110.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: SFU3205-4-350-428-C7

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Rolled Thread

Place Of Origin: China

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 80cm*10cm*10cm
Single gross weight: 3kg
Package Type: Wooden box
Picture Example:
Product Description

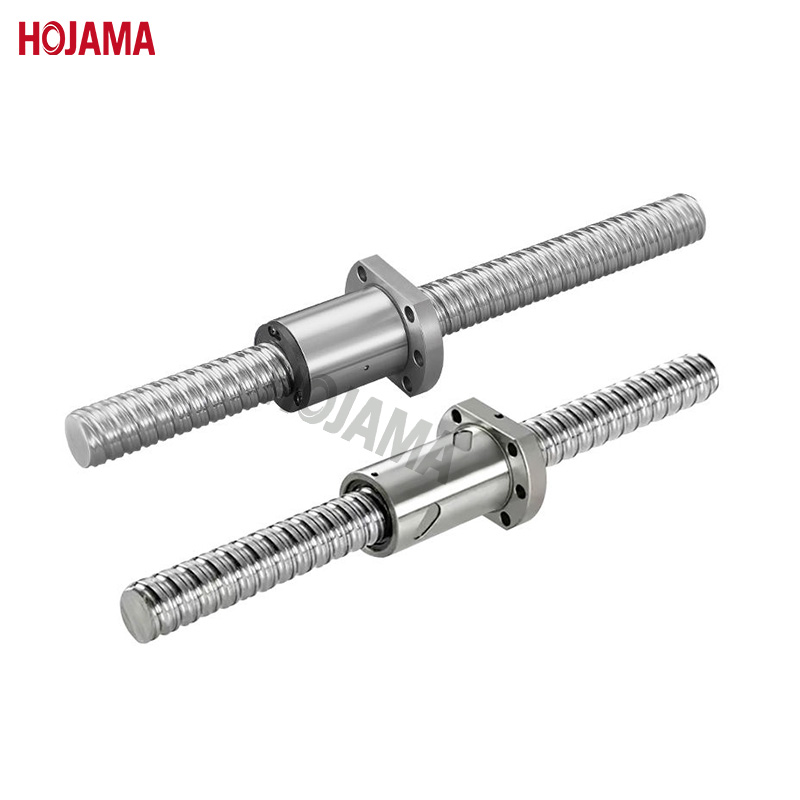

High-load Rolled Ball Screw(SFU3205-4-350-428-C7)


Precautions for the Use of Ball Screws

1) Installation

Be careful not to damage the thread surface of the screw during installation.
Normally, the nut and screw are supplied as an assembled unit. Special attention must be paid not to separate them during installation, as re-assembly by unprofessional personnel is extremely difficult. If separation occurs accidentally, do not attempt forced re-assembly; contact the supplier for professional handling.

2) Lubrication

Since the balls and screw are in metal-to-metal contact, lubricating oil or grease must be applied between them to prevent premature wear and extend service life.
Common lubrication methods include manual lubrication and automatic lubrication:
Manual lubrication involves periodic oil injection by operators.
Automatic lubrication requires an automatic oiling system, which will be elaborated on separately.

3) Dust Prevention

Similar to rolling bearings, ball screws are prone to accelerated wear or even damage when contaminated by debris, water, or cutting fluid. Therefore, dust-proof design for the screw must be considered during the design phase.

4) Unbalanced Load

The occurrence of unbalanced load directly affects the service life and noise level of the screw, and is usually accompanied by a rough running feel. If there is a discrepancy in smoothness between the unloaded screw and the assembled one, in addition to checking the screw's precision, it is mostly caused by poor assembly accuracy leading to unbalanced load.

Hojama, is a leading manufacturer specializing in High-Quality Ball Screws. Established in 2015, we are dedicated to serving the industrial and automation sectors with reliable products and professional services.? Our Ball Screw product covers micro ball screws, Rolled Ball Screws, Precision Ball Screws, and left and right-hand threaded ball screws, catering to diverse application needs.? We excel in providing custom solution design, leveraging our engineering expertise and advanced technologies to address unique customer requirements.?As a trusted partner, Hojama is committed to delivering tailored solutions that meet the evolving demands of various industries.

rolling ball screw

ball screw shaft ends

ISO9001
ball screw installation
