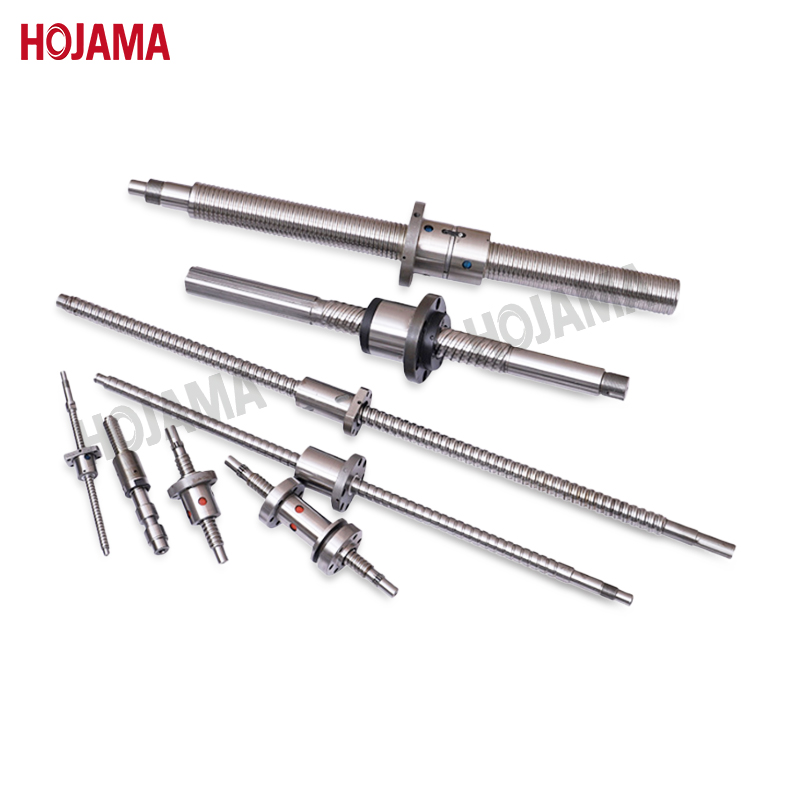

Diameter 32mm Precision Ball Screw for Linear Motion
Diameter 32mm Precision Ball Screw for Linear Motion

Diameter 32mm Precision Ball Screw for Linear Motion

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Dalian,Zhoushan
  • $20.99-200.99 /Piece/Pieces

Sample:
$201.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.G3205-3

BrandHOJAMA

StatusNew

Warranty Period1.5 Years

Applicable IndustryEnergy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)None

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsEngine, Plc, Bearing, Gearbox, Motor, Gear, Pump

Processing TechnologyMilled Thread

Place Of OriginChina

Overview
Supply Ability & Additional Information

PackagingWooden box

Productivity30000 sets/month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000 sets/month

CertificateISO9001:2015

PortShanghai,Dalian,Zhoushan

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 80cm*10cm*10cm
Single gross weight: 3kg
Package Type: Wooden box
Picture Example:
Download:
Product Description
?
The ground precision Ball Screw, with a diameter of 32mm and a lead of 5mm, is large-sized. It features 3-turn steel balls and a floating deflector. We offer this linear ball screw assembly in various materials, and stainless steel and bearing steel are recommended. Regarding the accuracy grade, it can reach up to C5/C3.
?
Differences between multi-start and single-start ball screws:
Double-start ball screws have raceway grooves formed by two or more spiral grooves combined. Typically, the load-bearing capacity of a double-start screw is around 60-70% higher than that of a single-start one. Their machining process is more complex. In comparison to single-start types, multi-start ball screws offer superior transmission efficiency and lower transmission torque, enabling rapid movement or precise positioning. Owing to the larger helix angle of multi-start ball screws, they are more susceptible to slippage. The meshing friction between the screw and nut is minimal, resulting in a lack of self-locking capability.
?
Hojama offers a wide range of precision position control products, including ball screws, Lead Screws, Linear Guideways, linear motors, Linear Modules, and Ball Splines.? Our products are of high quality and come at an affordable price. Moreover, Hojama provides you with 7*24h service. If you need a quote, please send us a product drawing and provide us with the product specifications. We will send you the quote and lead time as quickly as possible.
?
ball screw detail
?
G Series Precision Ground Ball ScrewG Precision ball screw
?
customized ball screw shaft Ends
Precision Ground Ball Screws
