Home> 探花精选> Ball Splines> 6mm Diameter Ball Spline> High Speed Round Flange Ball Spline SLF006

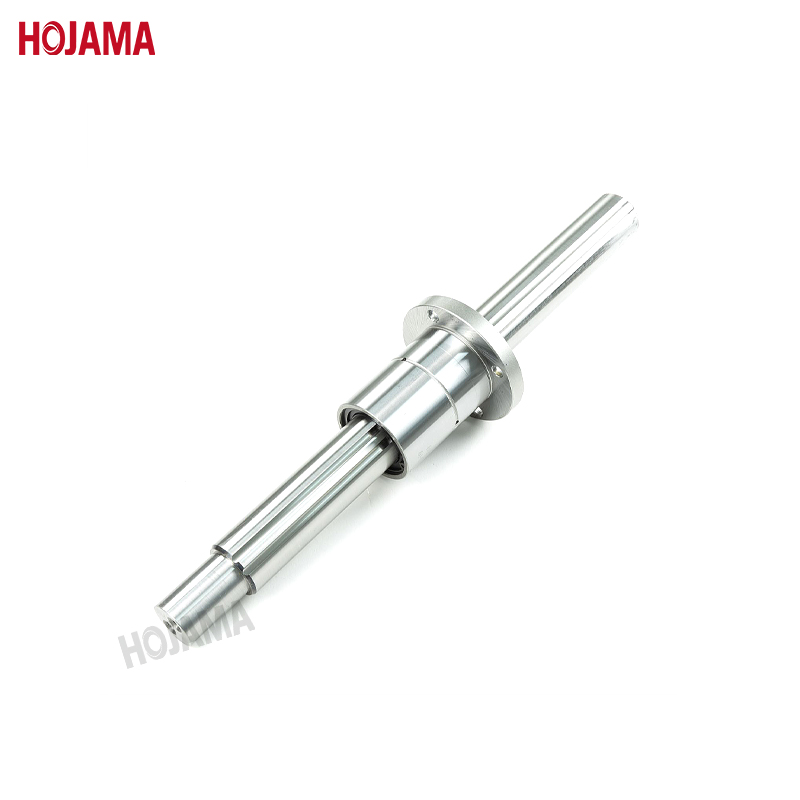

High Speed Round Flange Ball Spline SLF006
High Speed Round Flange Ball Spline SLF006

High Speed Round Flange Ball Spline SLF006

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Zhoushan,Dalian
Contact Us

  • $9.99-99.99 /Piece/Pieces

Sample:
$100.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: SLF006T2

Brand: HOJAMA

Place Of Origin: China

Status: New

Warranty: 1.5 years

Applicable Industry: CNC Machining Parts

Mechanical Test Report: Provided

Processing Technology: Grinding

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 30cm*5cm*5cm
Single gross weight: 0.3kg
Package Type: Wooden box
Picture Example:
Product Description
?
1) The wide and precision-ground grooves can enhance the load-carrying capacity and rigidity, making it more stable when dealing with larger moment loads.
?
2) The groove design, similar to Gothic arches, enables zero angular clearance and backlash, which makes the high-precision Ball Splines highly suitable for high-precision applications.
?
3) The 40-degree angular contact design allows the grooves to operate with minimal friction while achieving optimal sensitivity.
?
4) The simple ball-retaining design removes the spline nut without making a mess.
?
High-Quality Materials and Manufacturing Process: The ball screw spline adopts materials such as GCR15 and the manufacturing process of ground threads, ensuring outstanding durability and precision.
?
?
What Hojama can do for you:
?
1. We can offer? SOF SOT SLF SLT series ball spline.
2. We can process the shaft end according to the drawing
3. We can provide some sample testing.
4. We can supply all ball spline accessories.
5. We can also provide ball screws, Lead Screws, linear guides and Linear Modules.
?
ball spline
?
SLF ball splinesSLF ball spline
high precision ball spline
