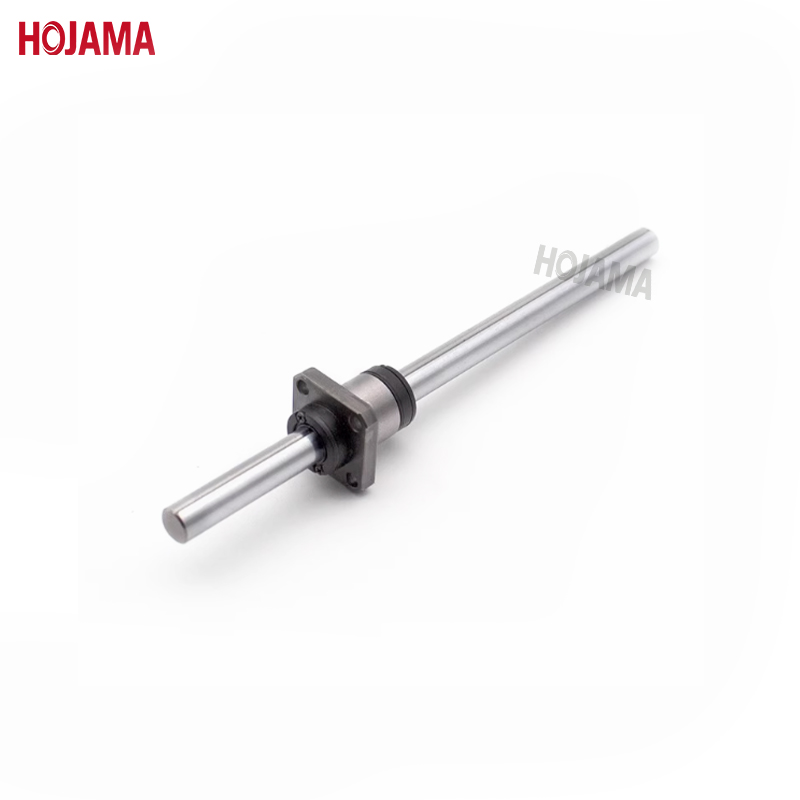

Linear Motion SOF012 Spline Shaft with Nut
Linear Motion SOF012 Spline Shaft with Nut

Linear Motion SOF012 Spline Shaft with Nut

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Zhoushan,Dalian
Contact Us

  • $13.99-109.99 /Piece/Pieces

Sample:
$100.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: SOF012T4

Brand: HOJAMA

Place Of Origin: China

Status: New

Warranty: 1.5 years

Applicable Industry: CNC Machining Parts

Mechanical Test Report: Provided

Processing Technology: Grinding

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 45cm*5cm*5cm
Single gross weight: 0.6kg
Package Type: Wooden box
Picture Example:
Product Description
SOF012T4——12mm diameter ball spline
?
The structure of our high-performance ball spline combines a spline shaft, a nut equipped with balls, and a sophisticated ball return mechanism featuring elements like return tubes or caps.
?
Unique Advantages:
1. Smooth Torque Transmission: The ball spline's design allows the balls installed in the outer cylinder of the spline shaft to roll effortlessly within the precision-ground rolling groove, ensuring seamless torque transmission. The innovative contact point design, accompanied by a 40° contact angle, not only enables high-sensitivity operations but also substantially boosts the load-bearing capacity. This means that even under challenging conditions, the Ball Splines can maintain stable performance.
?
2. Reliable Ball Circulation: The ball spline is designed with 3 rows of load-bearing steel balls on the outer diameter of the spline shaft, following a Gothic design. This allows the 3 rows of steel balls to simultaneously bear both clockwise and counterclockwise torque, enhancing both service life and rigidity. Each row of steel balls continuously circulates through a special circulator in the spline cap. Notably, even if the spline shaft is removed from the spline cap, the steel balls remain securely in place.
?
Customization and Delivery Benefits
1. Customizable Precision: We offer lead accuracy levels of N, H, and P, with the splines being standardized. Customers can specifically request the customized design according to their project needs. Additionally, the ball nuts are available with light preload as standard（P1), but the preload value can be adjusted to zero (P0) or a heavier setting (P2).
?
2. Fast Delivery: To meet the urgent demands of our clients, we provide the option to ship the ball spline shaft and ball spline nuts separately, ensuring the shortest delivery time possible.
?
Last but not least, Hojama also can provide ball screws, Lead Screws, linear guides, and Linear Modules. Come and make your purchase!
?
