Home> 探花精选> Rolled Ball Screws> 40mm Diameter Rolled Ball Screw> Single Nut Linear Motion Ball Screws 40mm

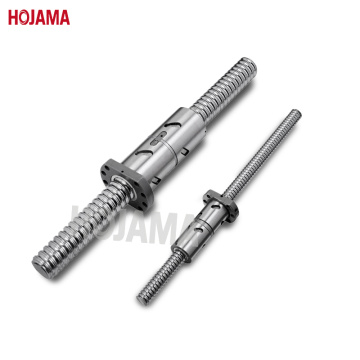

Single Nut Linear Motion Ball Screws 40mm
Single Nut Linear Motion Ball Screws 40mm

Single Nut Linear Motion Ball Screws 40mm

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Zhoushan,Dalian
Contact Us

  • $49.99-99.99 /Piece/Pieces

Sample:
$100.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: SFS4010-628-763-C7

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Rolled Thread

Place Of Origin: China

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 90cm*10cm*10cm
Single gross weight: 4kg
Package Type: Wooden box
Picture Example:
Product Description

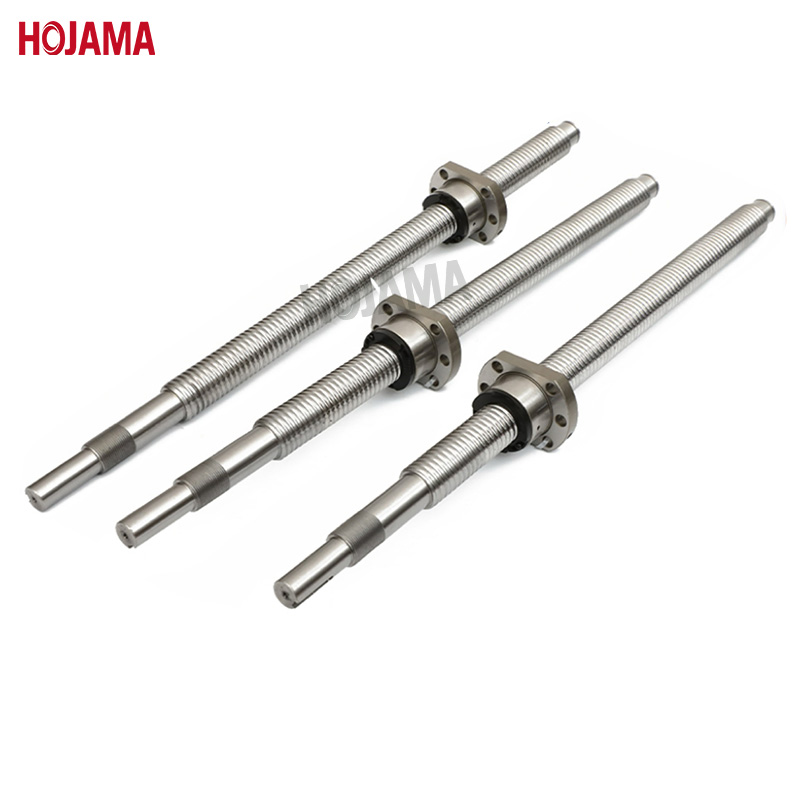

SFS4010-628-763-C7--40mm Diameter Rolled Ball Screw

How to Select Ball Screws
1. Number of Ball Circuits
This parameter is generally marked after the lead in the model, such as 4010-4, where the "-4" indicates the number of ball circuits.

2. Preload
Also known as pre-tensioning. For preload, a higher grade means a tighter fit between the nut and the screw, while a lower grade means a looser fit. The principle to follow is: select a higher preload grade for large diameters, double nuts, high precision, and larger driving torques; otherwise, select a lower grade.

3. Lead
Also known as pitch, which is the linear movement distance of the nut when the screw rotates one full turn. The lead is related to the linear speed: when the input rotation speed is constant, a larger lead results in a faster speed.

4. Ball Diameter
This parameter refers to the diameter of the rolling elements. It is not reflected in the model but is marked in the technical parameter tables of each manufacturer. It is generally related to the nominal diameter and lead.

5. Accuracy
Generally:
?
Select C7 (positioning error within ±0.05 for any 300 mm stroke) or lower for general machinery or ordinary CNC machinery.
Select above C5 (±0.018) and below C3 (±0.008) for high-precision CNC machinery.
Select above C3 for optical or inspection machinery.

6. Nominal Diameter
That is, the outer diameter of the screw. The nominal diameter is proportional to the load: the larger the diameter, the greater the load capacity.

7. Nut Type
Classified by flange type: approximately round flange, single-cut flange, double-cut flange, and non-flange types.
Classified by nut length: single nut and double nut.

8. Manufacturing Method Code
There are mainly two manufacturing methods for ball screws:
?
Rolling (also called roll forming or thread rolling), generally denoted by "F".
Grinding (also called precision grinding), generally denoted by "G".
Due to different processes, the achievable accuracy grades differ. Currently, the highest accuracy grade achievable by the rolling method is C5.

9. Length
There are two concepts of length:
1) Overall length.
2) Thread length.

In Hojama, you can find the Lead Screws, Linear Guideways, Ball Splines, and Linear Modules. Welcome to make an order.

ball screw by nook

customized ball screw shaft Ends
