Flanged Ball Screw 1010 for CNC Machine
Flanged Ball Screw 1010 for CNC Machine

Flanged Ball Screw 1010 for CNC Machine

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Dalian,Zhoushan
  • $45.99-170.99 /Piece/Pieces

Sample:
$171.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.MEF1010

BrandHOJAMA

StatusNew

Warranty Period1.5 Years

Applicable IndustryEnergy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)None

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsEngine, Plc, Bearing, Gearbox, Motor, Gear, Pump

Processing TechnologyMilled Thread

Place Of OriginChina

Overview
Supply Ability & Additional Information

PackagingWooden box

Productivity30000 sets/month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000 sets/month

CertificateISO9001:2015

PortShanghai,Dalian,Zhoushan

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 50cm*6cm*6cm
Single gross weight: 0.4kg
Package Type: Wooden box
Picture Example:
Download:
Product Description

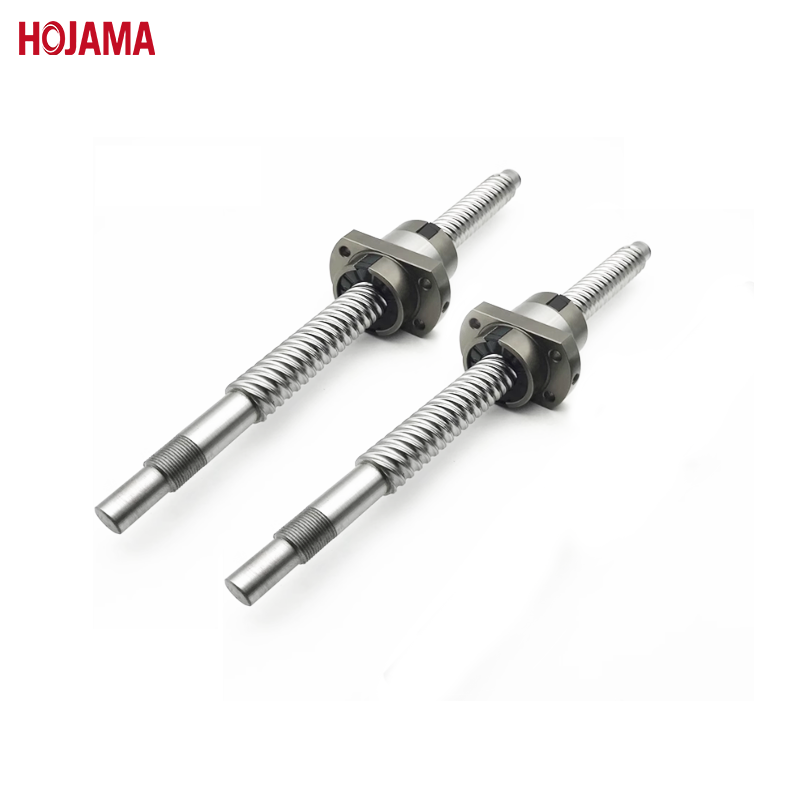

Ball Screw Model: MEF1010

?

This 10mm Diameter Ball Screw, consisting of a screw shaft, a ball nut, and balls, is designed to convert rotary motion into linear motion. Renowned for their low friction resistance, ball screws are commonly used in industrial equipment and precision instruments.

?

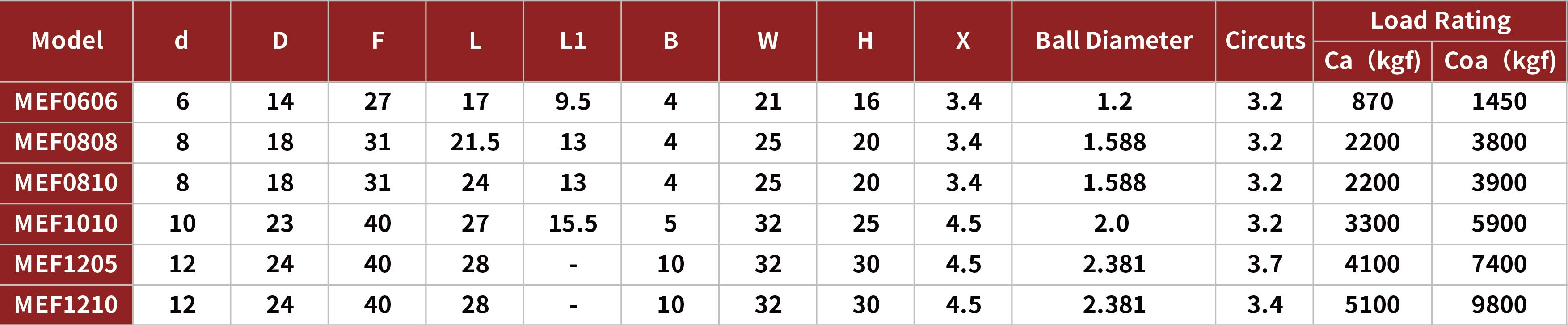

1. Specifications of MEF1010 ball screws:

?

1)?Material: GCR15 or Stainless Steel, others available upon request

?

2) Accuracy grade: C3 or C5

?

3) Deflector type: End cover return

?

4) Nut: Standard round nut with a flange

?

5) Shaft End: Customize according to your requirements

?

6) Thread Type: Right-hand by default; customizable for left-hand (some)

?

?

2. Advantages of Miniature Ball Screws:

1) High Precision

These extended service life ball screws are designed with a high accuracy grade of C3 or C5.

?

2) Exceptional Reversibility

HOJAMA ball screws offer consistent performance and accuracy in both directions, with no noticeable degradation or delay when reversing.

?

3) High Efficiency

Our small ball screw can result in drive efficiency reaching 90% to 96%, or even higher.

?

4) Perfect Size

Micro ball screws, with diameters ranging from 4mm to 16mm, are ideal for applications requiring compact sizes.

?

5) Low Friction

Compared to Lead Screws, ball screws incorporate steel balls between the shaft and nut, significantly reducing friction during operation.

?

?

Note:

1.?Product pricing is based on the product specification and quantity.

2.?Lead time: 15-25 days. It is subject to actual conditions.

3.?Samples available upon request.

?

crew detail
?
MEF2

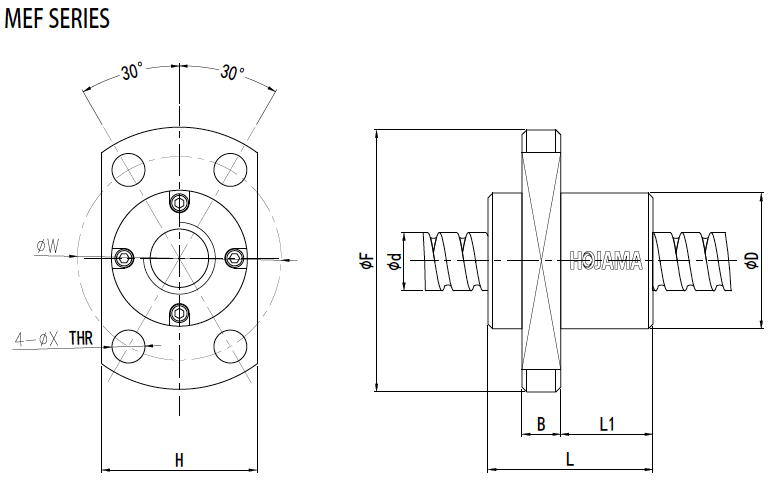

MEF SERIES
?
Typical Journal Ends
Ball screws and nut
