$3.99-65.99 /Piece/Pieces
| Sample: |
$65.99 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
|
| Selling Units: | Piece/Pieces |
|---|---|
| Single package size: | 42cm*5cm*5cm |
| Single gross weight: | 0.2kg |
| Package Type: | Wooden box |
| Picture Example: |
|
| Download: |
|

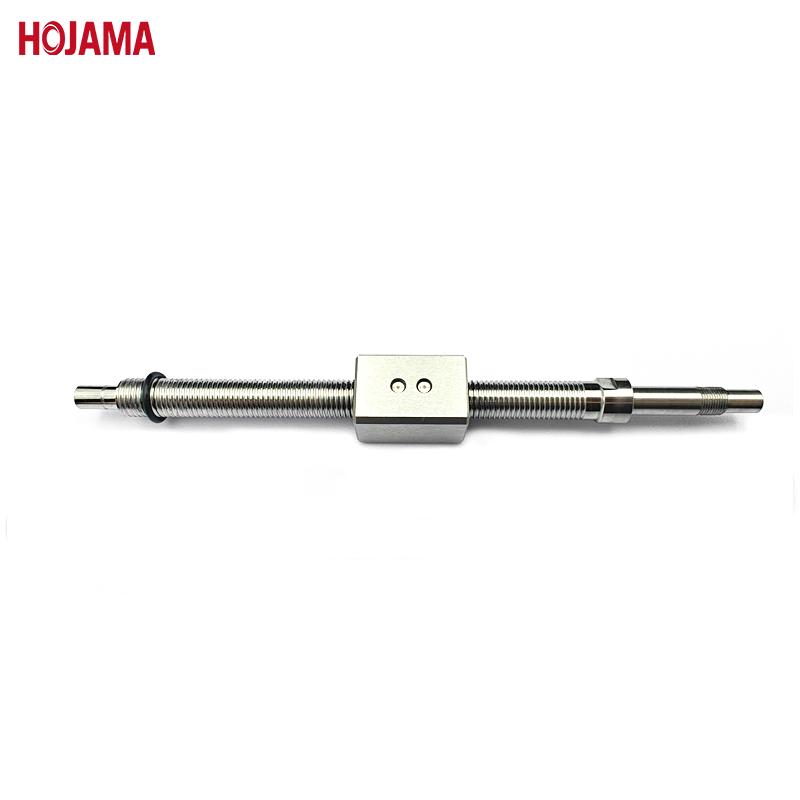

MIS0801C: 8mm Diameter Ball Screw
The internal recirculating ball screw comprises a screw shaft, nut, steel balls, and a return cover. The steel balls circulate in a single loop, with the return cover connecting two adjacent ball grooves and redirecting the balls to form a closed return path. The internal deflectors come in two shapes: round (such as MIS0801C) and waist-shaped.
?
This Miniature Ball Screw achieves transmission efficiencies up to 95%, making it one of the most efficient linear actuators available. The ball screw is available in C3 or C5 precision grade, which is critical for applications such as CNC machining and medical equipment. This mini-size ball screw offers versatile configurations, including single-start, double-start, and multi-start designs, allowing users to customize their linear motion systems to meet specific requirements.
?
Wide Applications of Miniature Ball Screws
1. CNC machine
2. Automation Equipment
3. Precision Measuring Instruments
4. Medical devices
5. Aerospace
?
Attention:
1. Lead time: 15-25 days
2. HOJAMA product prices are determined based on the product quantity and specifications.
3. You are welcome to request samples for evaluation.
?
?
