Home> 探花精选> Precision Ball Screws> 50mm Diameter Ball Screw> High Precision Ground CNC Ballscrew with Nut

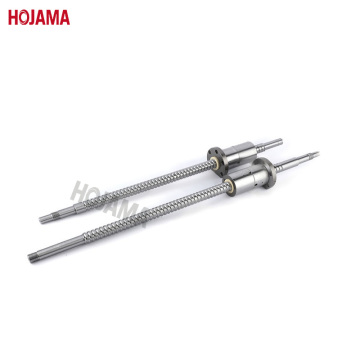

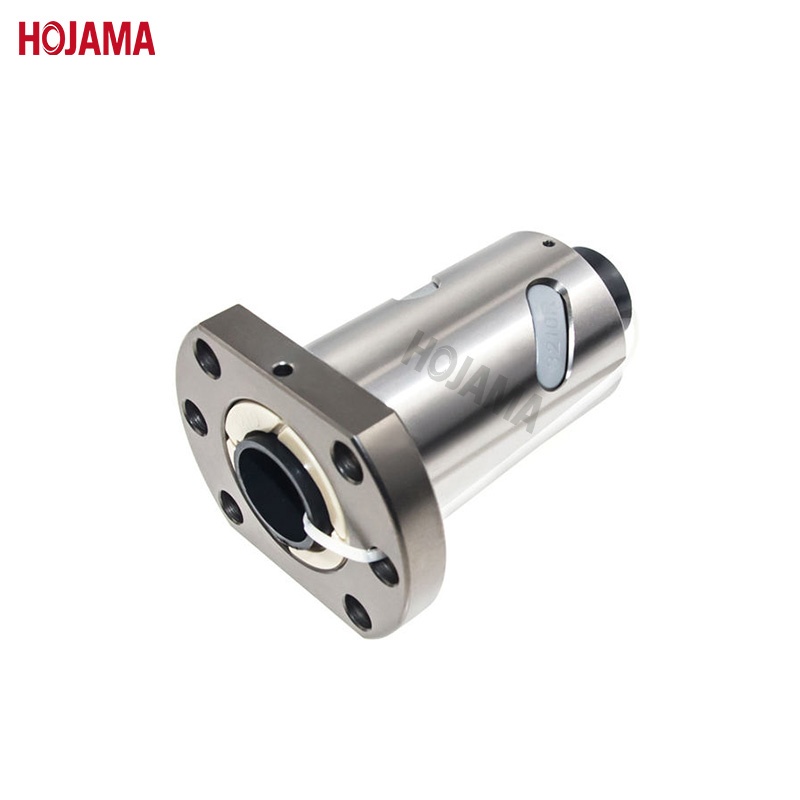

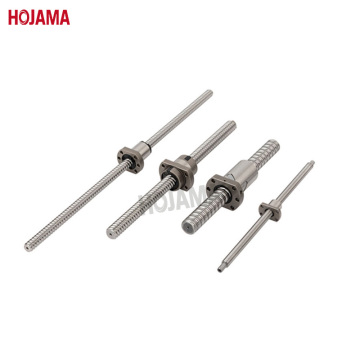

High Precision Ground CNC Ballscrew with Nut
High Precision Ground CNC Ballscrew with Nut

High Precision Ground CNC Ballscrew with Nut

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Dalian,Zhoushan
Contact Us

  • $29.99-299.99 /Piece/Pieces

Sample:
$300.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: GD5008-3-268-300-C3

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Energy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Engine, Plc, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 95cm*10cm*10cm
Single gross weight: 4.5kg
Package Type: Wooden box
Picture Example:
Product Description
GD5008-3-268-300-C3--50mm Diameter Ball Screw

What is the "critical speed" of a ball screw?
The "critical speed" of a ball screw and nut refers to the rotational speed at which the ball screw is prone to catastrophic failure due to excessive deflection and vibration. For long-axis components like ball screws, gravitational force causes mid-span sagging. When the ballscrew kit rotates with both ends supported by bearings, this sagging (arch shape) intensifies with increasing speed. As the rotational speed rises, the arching amplifies until the ball screw fails, and this failure-threshold speed is defined as the critical speed.
?
Operating a ball screw pair beyond its critical speed leads to significant precision degradation of the entire machine due to severe vibrations. It is recommended to run all ball screws at 80% or lower of their critical speed. The critical speed can be enhanced by optimizing support configurations—for example, using ball screw support units with angular contact paired bearings at both ends. The selection of support bearings also plays a crucial role in improving the critical speed threshold.

It would be better if you sent the product drawing before you consult, no matter it is ball screw, Lead Screw, Linear Guide, ball spline or linear module.
?
ball screw by nook

GD linear actuators ball screwGD drilling machine ball screw
customized ball screw shaft Ends
Non-standard precision ball screw
