High Precision Single Nut 50mm Ball Screw
High Precision Single Nut 50mm Ball Screw

High Precision Single Nut 50mm Ball Screw

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Dalian,Zhoushan
Contact Us

  • $29.99-299.99 /Piece/Pieces

Sample:
$300.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: CBT5008-133-150-C5

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Energy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Engine, Plc, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 95cm*10cm*10cm
Single gross weight: 4.5kg
Package Type: Wooden box
Picture Example:
Product Description

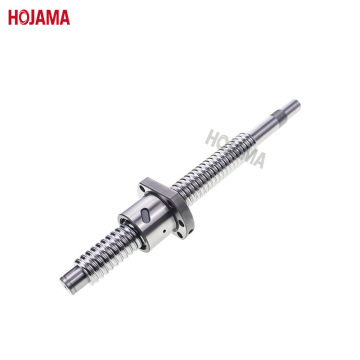

CBT5008-133-150-C5--High precision 50mm Diameter Ball Screw

??

Steps for Reinstalling the Nut of the Ball Screw Kit

I. Prepare the Hollow Sleeve

Turn a hollow sleeve with the following specifications:
?
?Outer diameter: Slightly smaller than the bottom diameter of the ball screw raceway
?
?Inner diameter: Slightly larger than the outer diameter of the ball screw end
?
?Length: Longer than the length of the ball nut
?

II. Load the Steel Balls

Block one end of the hollow sleeve with a soft material like foam, and insert it into a clean nut without balls.
?
Install clean balls one by one into each circulation groove. After filling one circle, roll the hollow sleeve to confirm smooth operation. Then, push to install the next circle until filled.
?

III. Install the Ball Nut

Remove the filler at the blocked end. Fit the hollow sleeve together with the nut onto the end of the ball screw shaft.
?
Hold the hollow sleeve with one hand and screw the nut with the other hand until the nut is completely screwed into the thread groove of the ball screw and ball nut.
?

IV. Lubrication and Commissioning

Inject grease or oil into the oil injection hole of the nut. Rotate the nut to move for the full stroke more than 2 times to check if the operation is smooth.
?
Inject lubricating grease again to complete the reinstallation.
?

Advantages of the recirculating ball screw and nut

1. Smooth Motion

The Ball Screw Drive system features point-contact rolling motion, with low friction resistance, high sensitivity, no startup chatter, and no crawling at low speeds. This enables precise control of micro-feeding.
?

2. High Transmission Efficiency

The transmission efficiency of the ball screw system reaches 90%–98%, 2–4 times that of traditional sliding screw systems. It can generate large thrust with minimal torque and allows reversible motion (linear to rotational).
?

3. High Precision

The system exhibits minimal temperature rise during operation. Axial clearance can be eliminated via pre-tightening, and the ball screw kit can be pre-stretched to compensate for thermal elongation, ensuring high positioning and repeat positioning accuracy.
?

4. Good Synchronization

Thanks to smooth motion, sensitive response, and no stagnation or slippage, multiple identical ball screw systems can synchronize the operation of several identical components or devices effectively.
?

5. High Durability

Steel ball contact areas are hardened (HRC 58–63) and precision-ground, with the circulation process purely relying on rolling motion.
?

6. High Reliability

Compared to other transmission mechanisms (e.g., hydraulic drives), linear ball screw systems have a low failure rate. Maintenance is simple, requiring only general lubrication and dust protection; they can even operate without lubrication in special cases.
?

7. No Backlash and High Rigidity

The system uses a Gothic arch groove design for optimal steel ball-groove contact, facilitating smooth operation. Applying appropriate pre-tightening eliminates axial clearance, enhances rigidity, reduces elastic deformation between the ball screw and Lead Screw, and achieves higher precision.
?
Hojama is a professional manufacturer of the linear motion products, including ball screw, lead screw, linear guideway, linear module and ball spline. We have more than 10 years of experience and can provide the professional solution for your equipment.
?
?
ball screw by nook
?
CBT ball screw for saleCBT kss mrb ball screw

customized ball screw shaft Ends

ISO9001
High-precision Screw Linear Module
