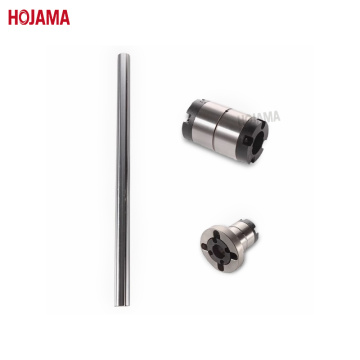

High Precision SOT010 Type Ball Spline for Robot
High Precision SOT010 Type Ball Spline for Robot

High Precision SOT010 Type Ball Spline for Robot

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Zhoushan,Dalian
  • $7.99-99.99 /Piece/Pieces

Sample:
$100.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.SOT010T2

BrandHOJAMA

Place Of OriginChina

StatusNew

Warranty1.5 years

Applicable IndustryCNC Machining Parts

Mechanical Test ReportProvided

Processing TechnologyGrinding

Overview
Supply Ability & Additional Information

PackagingWooden box

Productivity30000 sets/month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000 sets/month

CertificateISO9001:2015

PortShanghai,Zhoushan,Dalian

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 40cm*5cm*5cm
Single gross weight: 0.5kg
Package Type: Wooden box
Picture Example:
Product Description
?
The ball spline represents a high-efficiency linear motion mechanism that capitalizes on the smooth rolling motion of steel balls. Thanks to its unique design, it can bear radial load and torque simultaneously, which makes it invaluable across various fields. Notably, it finds extensive application in conveyor systems, ensuring the seamless and precise transportation of goods. Its versatility and reliability have firmly established it as a go-to solution for numerous industrial and technological scenarios demanding precise linear motion control.
?
Advantages of stainless steel ball spline:?
?
1. Large load capacity and long life
The raceway surface is precisely ground into an R shape that closely matches the diameter of the steel balls. This maximizes the contact area for the steel balls. As a result, the high-sensitivity ball spline can carry heavy loads and last a long time.
?
2. Wide Variety of Variations
Transfer grooves on the shaft and outer casing match steel balls well, helping transmit torque. Preloading gets rid of rotational clearance. This makes the system stiffer, improves rotational positioning, and boosts overall performance.
?
3. Easy additional processing
Hojama ball spline uses a round shaft with a transfer groove. This simplifies shaft-end machining and part mounting, streamlining installation and potentially saving time.
?
In addition to Ball Splines, Hojama can also provide you with ball screws, Lead Screws, linear guides, Linear Modules, etc. You are welcome to consult with drawings.
?

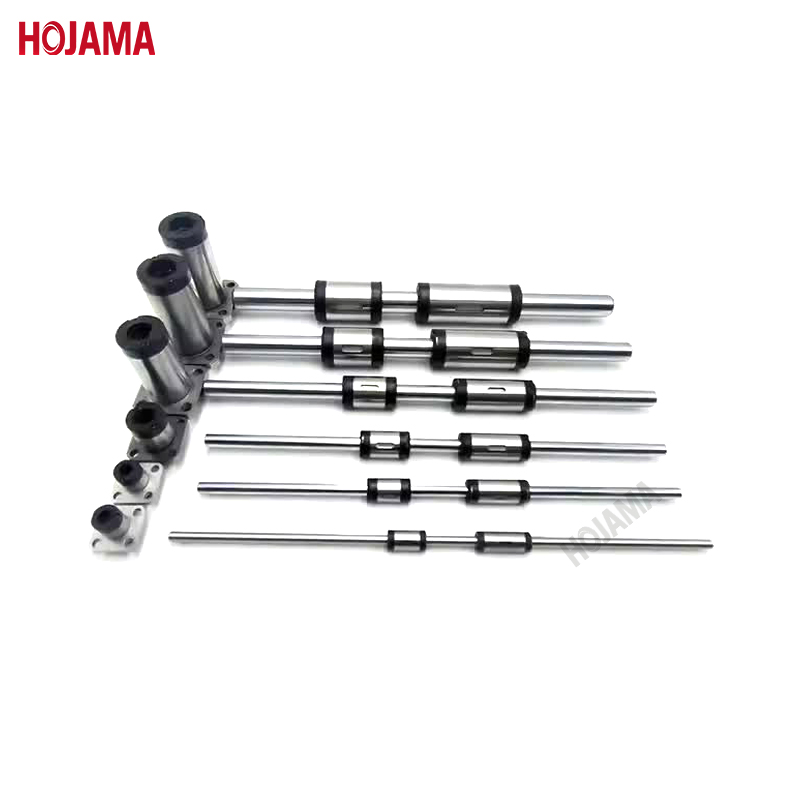

ball spline
?
