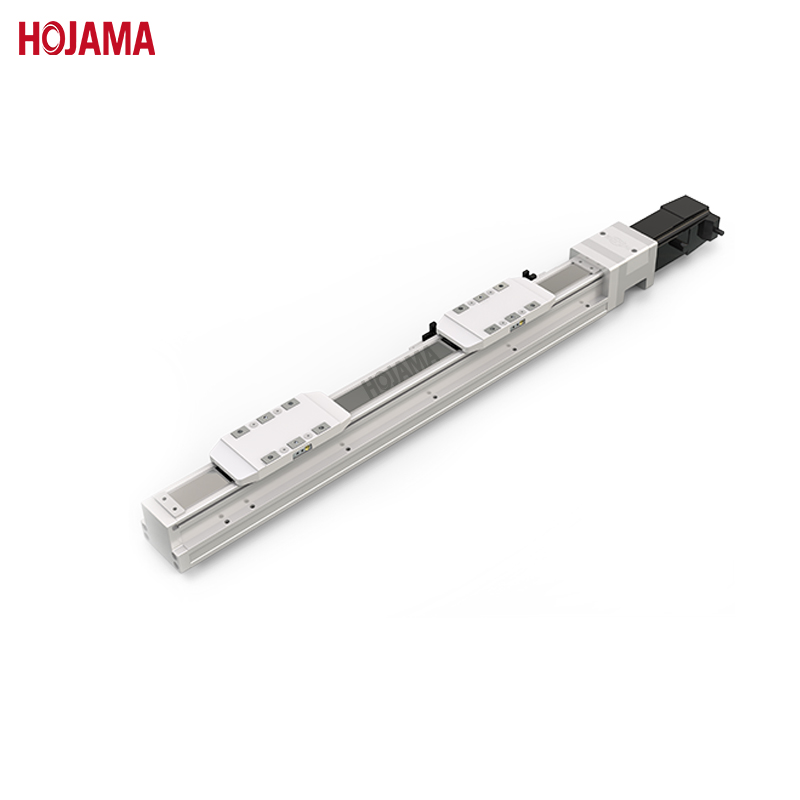

XYZ Multi Axis Cnc 700mm Steel Linear Module
XYZ Multi Axis Cnc 700mm Steel Linear Module

XYZ Multi Axis Cnc 700mm Steel Linear Module

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 1 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Zhoushan,Dalian
Contact Us

  • $35.99-320.99 /Piece/Pieces

Sample:
$321.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: ATH120-MD

Brand: HOJAMA

Place Of Origin: China

Status: New

Warranty Period: 1.5 Years

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Selling Point: High-Accuracy

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/Month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/Month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 50cm*10cm*10cm
Single gross weight: 2.5kg
Package Type: Wooden box
Picture Example:
Product Description

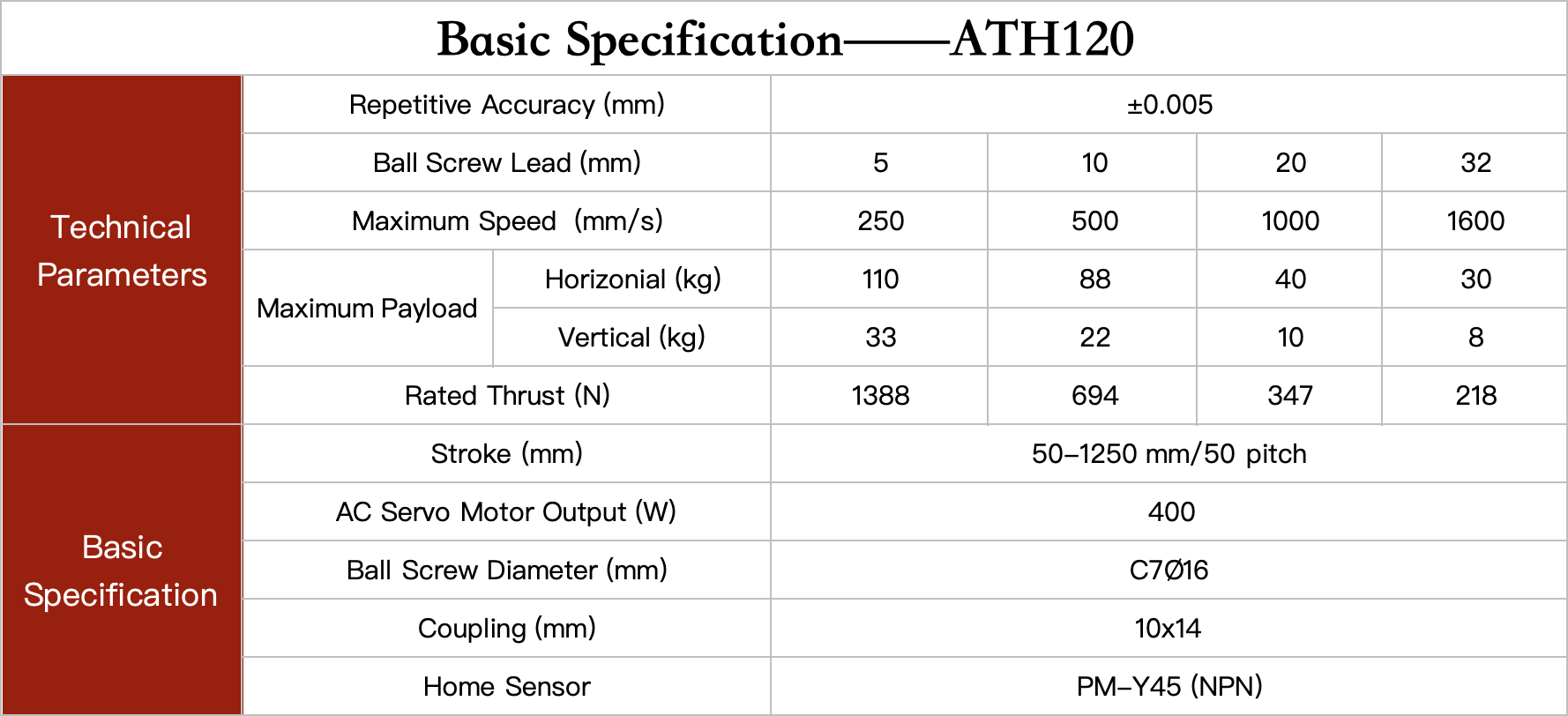

础罢贬120——120尘尘 Embedded Linear Slide Modules
?
1. Performance and Precision
1) Enhanced Straightness: The ATH120 features a significantly improved equal-height straightness, ensuring smooth and accurate linear motion.
?
2）Long Stroke: With a maximum stroke length of up to 1250mm, our CNC Linear Modules can meet the requirements of various applications with different travel distances.
?
3)High Repeatability: The repeat accuracy of the 120mm linear module can reach up to ±0.005mm, providing high-precision motion control for demanding applications.
?
2. Drive System
Hojama high-performance linear module can be equipped with either a servo motor or a stepper motor drive, offering flexibility to match different application requirements and budget constraints.
?
3. Protection and Durability
1) Aluminum Cover Design: The aluminum cover protects the internal components from foreign objects, preventing them from being caught and causing malfunctions or safety hazards.
?
2)Sealed Dust-proof Structure: A specially designed high-strength and bend-resistant steel belt is used for a full-sealed dustproof structure, ensuring that it does not need to be replaced within 30,000 kilometers.
?
3)External Oil Nozzle and Oil Storage Circuit: An external oil nozzle and oil storage circuit are set up. One-time oil injection can directly reach the inside of the Lead Screw and guide rail, which helps to maintain smooth operation and extend the service life of the module.
?
ATH120 Linear Module details.pic
?

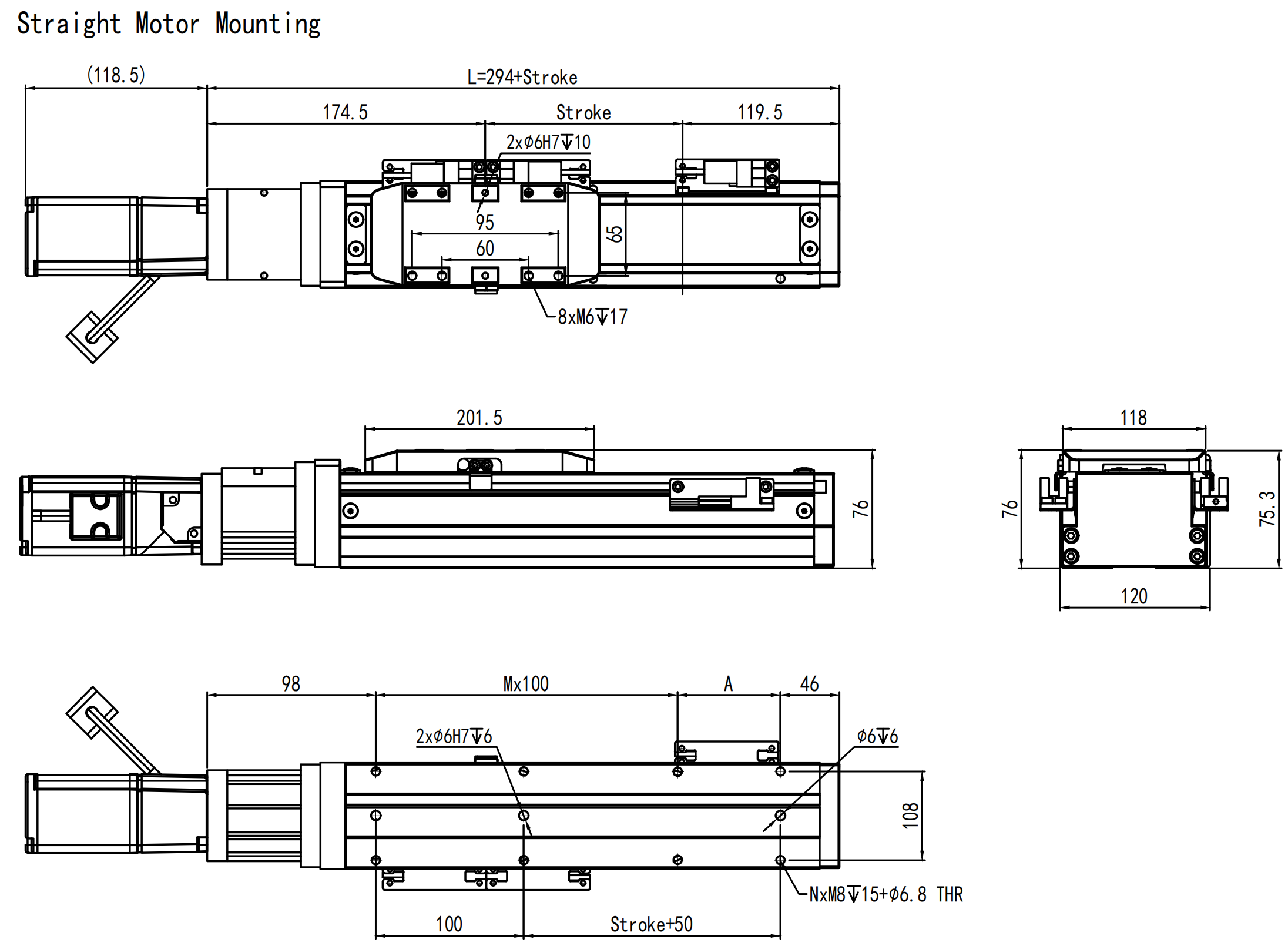

ATH120 linear module direct mountATH120 linear module direct mount.pic
?

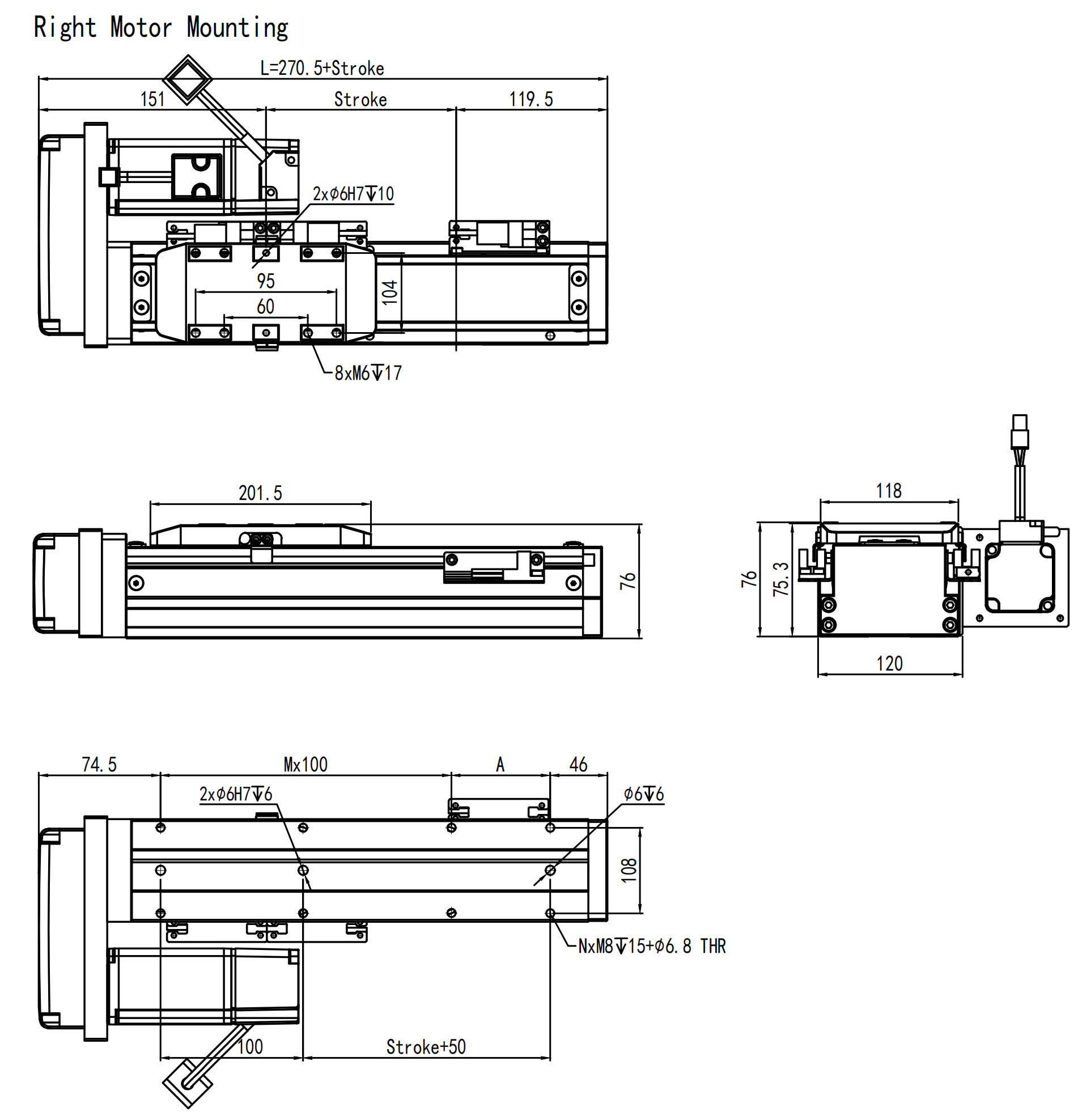

ATH120 linear module right mountATH120 linear module right mount.pic
?

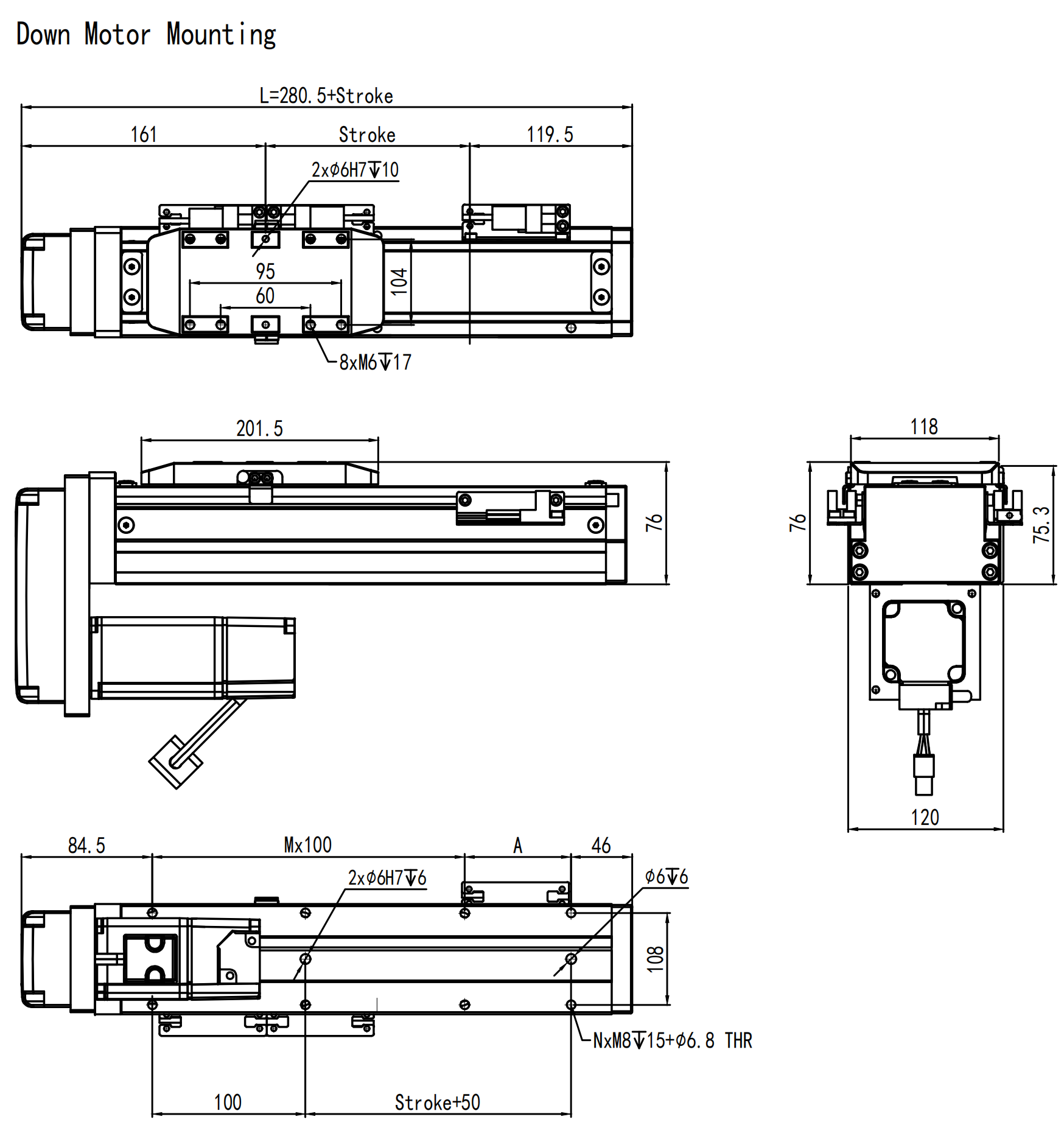

ATH120 linear module down mountATH120 linear module down mount.pic
?

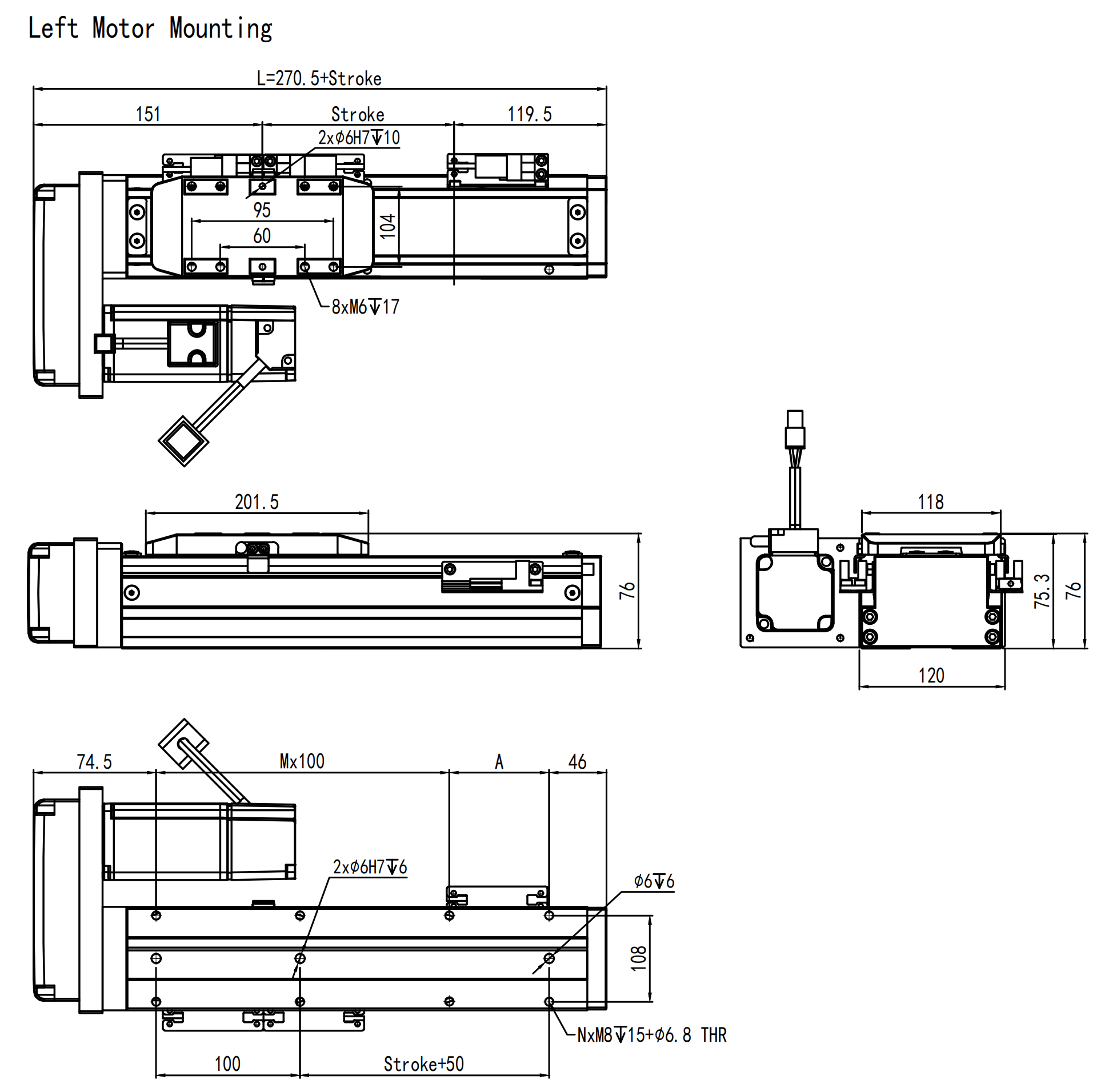

ATH120 linear module left mountATH120 linear module left mount.pic
