32mm High-Performance Ball Screw Steel
32mm High-Performance Ball Screw Steel

32mm High-Performance Ball Screw Steel

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Dalian,Zhoushan
Contact Us

  • $20.99-200.99 /Piece/Pieces

Sample:
$171.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: GD3205-4-292-376-C5

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Energy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Engine, Plc, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 80cm*10cm*10cm
Single gross weight: 3kg
Package Type: Wooden box
Picture Example:
Product Description

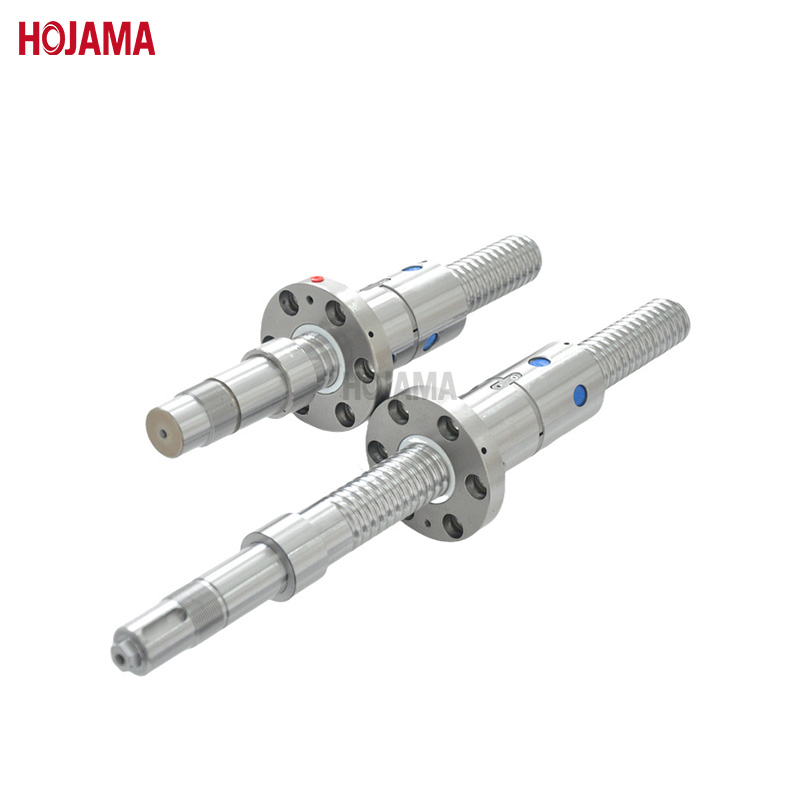

GD3205-4-292-376-C5--32mm Diameter Ball Screw
?
Processing Methods of Large-Lead Ball Screw Nut:
?
1. Turning
The earliest method used for processing large-lead ball screw nuts is turning. The general technological route for machining large-lead nuts is: blanking → forging forming → rough turning of outer circle → quenching and tempering → milling of each plane → deburring → drilling and reaming of each hole → internal hole turning → finish turning of raceway. However, the machining accuracy of large-lead nuts processed by this method is poor and cannot meet the requirements of high precision. It can only achieve high precision through finish grinding or lapping on this basis.
?
2. Broaching of Large-Lead Arc Raceway
Considering the characteristics of the large-lead arc raceway, the technological method of "broaching raceway → quenching → lapping and polishing raceway" is adopted.
?
3. Milling
In recent years, high-speed hard internal thread cyclone milling machines have been introduced, which change the traditional processing principle of thread raceways. The tool holder does not need to be deflected but is parallel to the nut axis, and the cutting surface of the forming tool coincides with the normal section of the raceway. The section shape of the milled raceway is consistent with that of the forming tool.

Besides the ball screw, we also produce the Lead Screw, Linear Guide, ball spline and linear module. Welcome to consult on the product drawing.

ball screw by nook
?
customized ball screw shaft Ends
Utral-long Rolled Ball Screw
