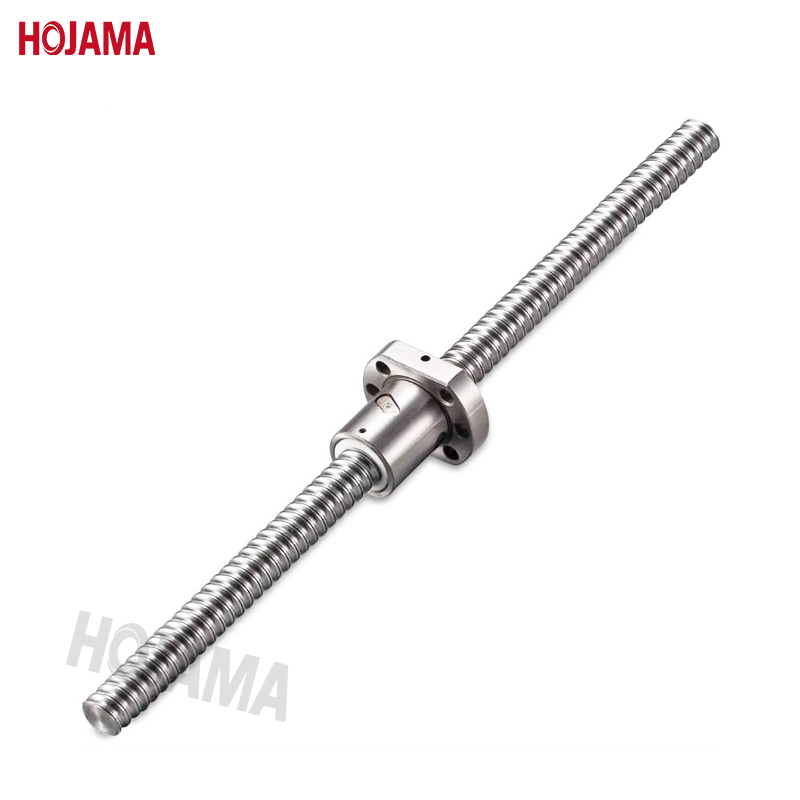

High Precision Rolled Ball Screw SFNU2005-4
High Precision Rolled Ball Screw SFNU2005-4

High Precision Rolled Ball Screw SFNU2005-4

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Dalian,Zhoushan
Contact Us

  • $17.99-179.99 /Piece/Pieces

Sample:
$179.99 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: SFNU2005-4

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Energy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Engine, Plc, Bearing, Gearbox, Motor, Gear, Pump

Place Of Origin: China

Processing Technology: Rolled Thread

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 80cm*8cm*8cm
Single gross weight: 1.4kg
Package Type: Wooden box
Picture Example:
Product Description
Screw shaft rolling is a common way to make screw shafts by rolling. It's often called thread rolling. In this process, a round rod is shaped by rotating rollers. The rod slowly changes shape through plastic deformation. This makes a long, threaded rod, which is the screw shaft.
?

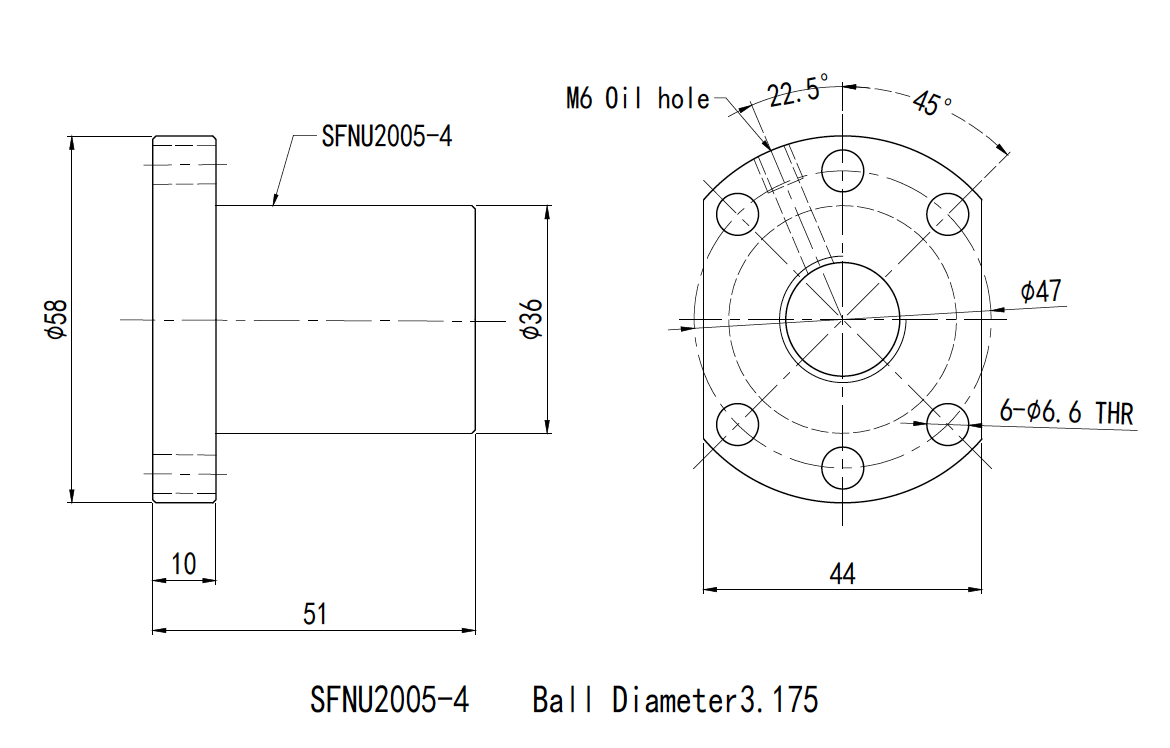

SFNU2005-4: Rolled Ball Screw? ? ? Number of ball circuits: 4
?
Compared to ground?precision ball screws, the advantages of cost-effective Rolled Ball Screws：
1) Cost-effectiveness?
In contrast to precision ground ball screw, rolled ball screws are more cost-efficient. Their manufacturing process is simpler and can reduce material waste. For example, in a 1000-unit batch, linear motion rolled screws waste only 5% of raw material, while ground ones may waste up to 30%, lowering material costs in the entire process.?
?
2) Shorter Lead Times?
Rolled ball screw production is much faster. The continuous rolling process, once set up, can produce linear screws at high speed. A factory might produce 1000 rolled screws in a day, but only 400 ground ones.?
?
3) Broader Application Scopes?
Economical rolled ball screws are used in more fields. This cost-and-time flexibility makes them suitable for various applications where cost control is more crucial than high precision.
?
For the actual price and delivery time of your ideal ball screw kit, HOJAMA is looking forward to your inquiry!
?
roller ball screw
?
rolled ballscrew
?
Typical Journal Ends
ball screw inspection
