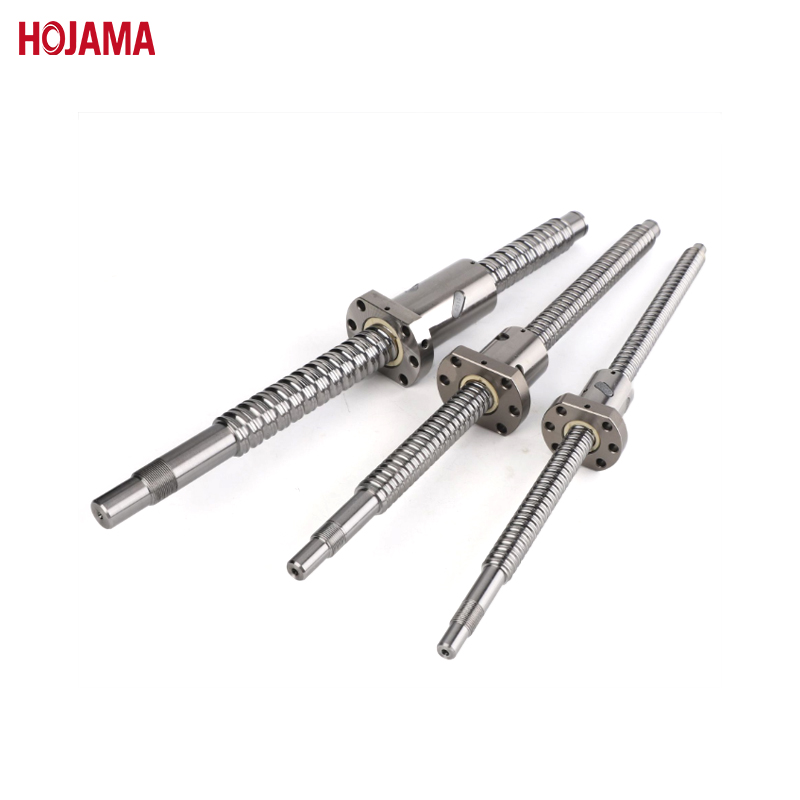

SFNU3205 Rolled Ball Screw C7 for CNC Lathe
SFNU3205 Rolled Ball Screw C7 for CNC Lathe

SFNU3205 Rolled Ball Screw C7 for CNC Lathe

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Zhoushan,Dalian
  • $10.99-100.99 /Piece/Pieces

Sample:
$101.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.SFNU3205-4

BrandHOJAMA

StatusNew

Warranty Period1.5 Years

Applicable IndustryManufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)None

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsPlc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing TechnologyRolled Thread

Place Of OriginChina

Overview
Supply Ability & Additional Information

PackagingWooden box

Productivity30000 sets/month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000 sets/month

CertificateISO9001:2015

PortShanghai,Zhoushan,Dalian

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 80cm*10cm*10cm
Single gross weight: 3kg
Package Type: Wooden box
Picture Example:
Product Description
?
Our high-rigidity Rolled Ball Screws present an outstanding price-performance ratio, suitable for applications with moderate efficiency and service life requirements. Available in diverse leads and up to 100 mm nominal diameter, they are a cost-effective alternative to ground versions. With shorter delivery times and lower costs, they offer practical solutions for diverse industrial uses.
?
These durable rolled thread ball screws feature a flanged single nut with an internal return and wipers assembled on both sides. Besides possessing advantages such as smooth operation, high rigidity, durability, and excellent dust resistance, linear precision rolled screws have a relatively small nut size, making them more suitable for applications where the working space is limited.
?
Application of Hojama Rolled Ball Screw and nut:
?
1. Dental Technology
?
2. Woodworking Industry
?
3. Automation
?
Hojama rolled screws and nuts include 20mm Diameter Rolled Ball Screw, 25mm Diameter Rolled Ball Screw, 32mm Diameter Rolled Ball Screw, 40mm Diameter Rolled Ball Screw, 50mm Diameter Rolled Ball Screw, 63mm Diameter Rolled Ball Screw, and 80mm Diameter Rolled Ball Screw. (SFU, SFNU, BSH, DFUR, GTHA, SFA, SFE, SFI, SFK, SFNI, SFNUL, SFS, SFUR, SFY series)
?
Shafts and nuts with the standard dimensions presented here can be obtained promptly. To fulfill the requirements of diverse industrial equipment, Hojama also offers customization services. If you are interested, you can consult us with your drawings.?
?
ball screw detail
?

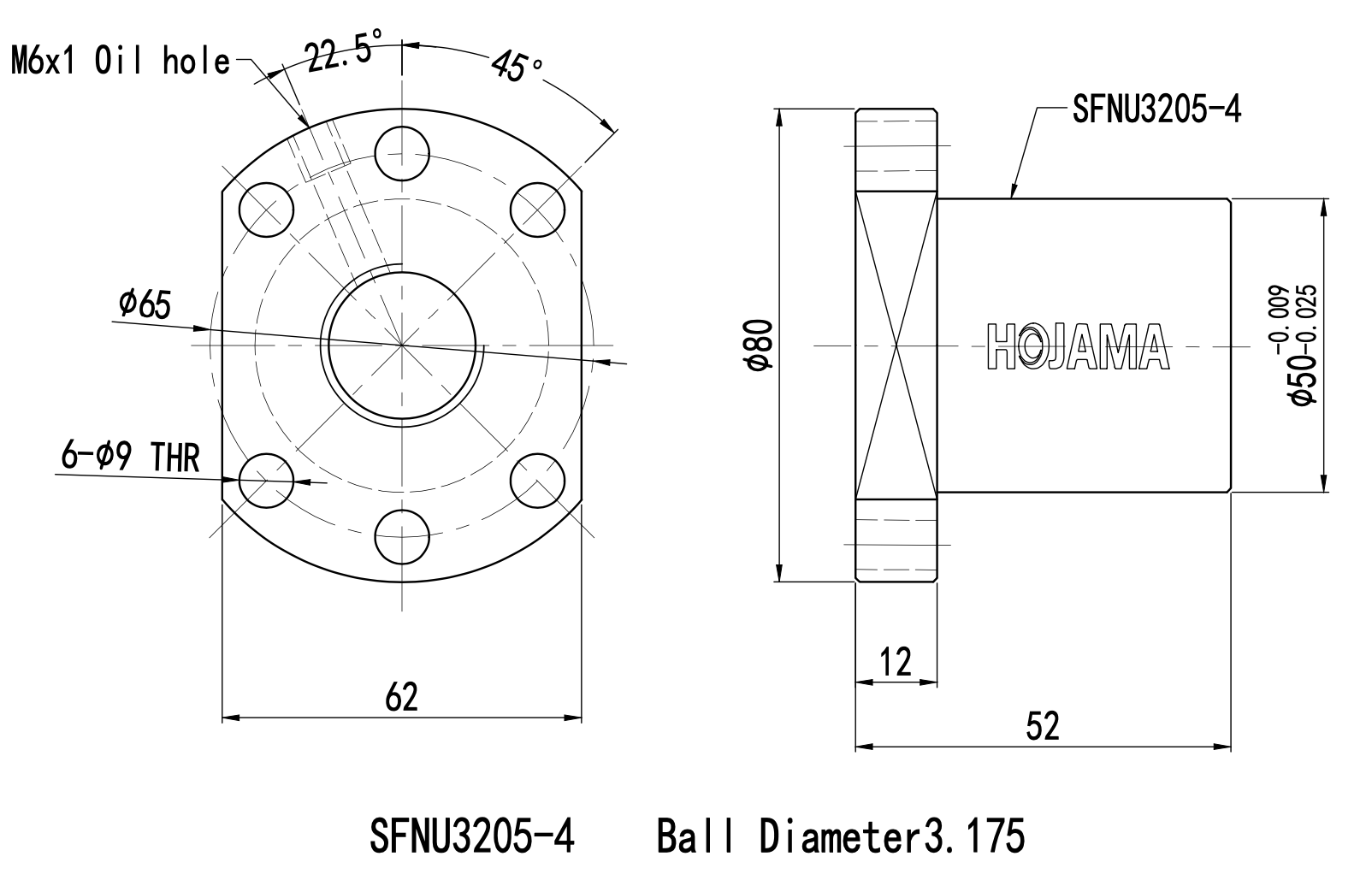

SFNU3205-4 rolled thread ball screw
?
ball screw shaft ends
SFNU Rolled Ball Screw
