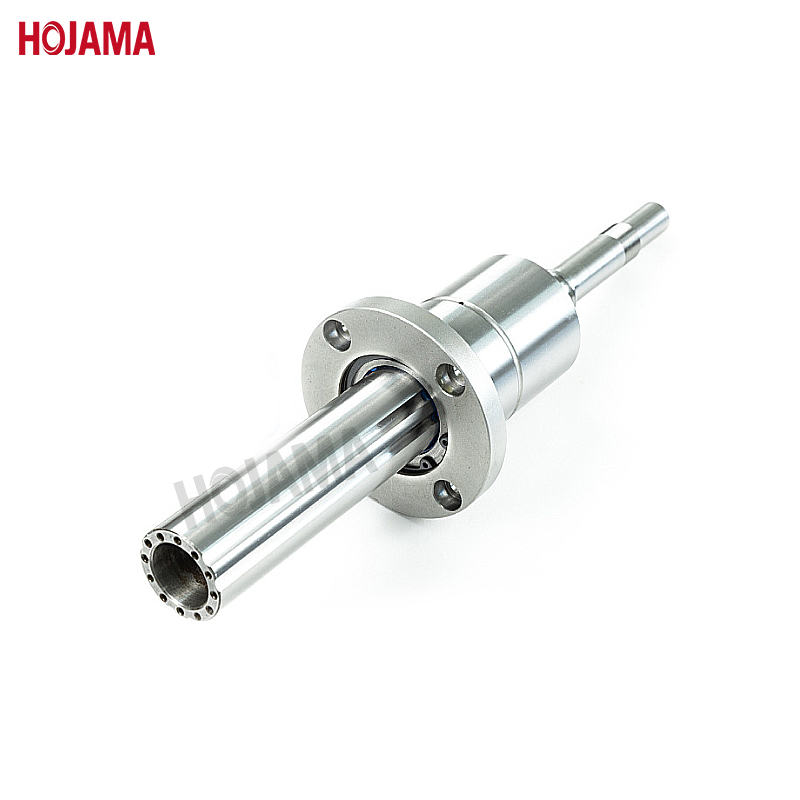

Single Nut Cylindrical Ball Spline SLT016
Single Nut Cylindrical Ball Spline SLT016

Single Nut Cylindrical Ball Spline SLT016

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Zhoushan,Dalian
  • $29.99-109.99 /Piece/Pieces

Sample:
$110.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.SLT016T2

BrandHOJAMA

Place Of OriginChina

StatusNew

Warranty1.5 years

Applicable IndustryCNC Machining Parts

Mechanical Test ReportProvided

Processing TechnologyGrinding

Overview
Supply Ability & Additional Information

PackagingWooden box

Productivity30000 sets/month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000 sets/month

CertificateISO9001:2015

PortShanghai,Zhoushan,Dalian

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 45cm*5cm*5cm
Single gross weight: 0.4kg
Package Type: Wooden box
Picture Example:
Product Description
?
The SLT series ball spline features a cylindrical spline nut equipped with a keyway. You can choose high-performance Ball Splines of shaft diameters from 6mm to 50mm. The steel ball spline nuts are ingeniously crafted with recirculating ball tracks, enabling the linear transmission of torque along the raceway of the linear spline shaft. The rotating ball spline is capable of generating dynamic forces reaching up to 4,086 kgf and static forces as high as 5,615 kgf. The maximum allowable length for the shaft is 3,000mm. Moreover, the ends of the shaft can be custom-tailored according to your specific drawing. For further discussion regarding your particular requirements, please get in touch with Hojama.
?
Feature of Hojama Ball Splines:
?
1. Transmission of torque?
In the ball spline mechanism, the steel balls, which travel on the angular contact groove, enable the relative movement between the ball spline nut and the spline screw. This interaction is crucial as it allows for the efficient transmission of torque, ensuring the proper functioning of the linear motion ball spline system.
?
2. Integral structure?
The combination of the ball spline nut and support shaft within the Ball Spline system enables it to attain a high level of precision.
?
3. Installation?
The high-precision ball spline features an optimized retainer design. This design permits the nut to be detached from the spline shaft with ease. Meanwhile, it ensures that the steel balls stay firmly in place within the nut, enhancing the convenience and reliability of the precise ball spline assembly and maintenance.
?
4. Lubricant path?
The ball spline is equipped with an optimized lubricant path. This path enables the grease to be directly channeled to the ball track.?
?
Hojama, a factory-based mechanical production company, manufactures various products including ball splines, ball screws, Lead Screws, linear guides, and Linear Modules. If you have any interest, feel free to consult (preferably with a PDF version of the product drawing).
?
ball spline
?
SLT ball spline SpecificationSLT ball spline specification
high precision ball spline
