4mm CNC Ball Screw Customized with 2 Nuts
4mm CNC Ball Screw Customized with 2 Nuts

4mm CNC Ball Screw Customized with 2 Nuts

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Dalian,Zhoushan
  • $25.99-250.99 /Piece/Pieces

Sample:
$251.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.MEX0406RL(P3)

BrandHOJAMA

StatusNew

Warranty Period1.5 Years

Applicable IndustryEnergy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)None

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsEngine, Plc, Bearing, Gearbox, Motor, Gear, Pump

Processing TechnologyMilled Thread

Place Of OriginChina

Overview
Supply Ability & Additional Information

PackagingWooden box

Productivity30000 sets/month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000 sets/month

CertificateISO9001:2015

PortShanghai,Dalian,Zhoushan

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 20cm*5cm*5cm
Single gross weight: 1kg
Package Type: Wooden box
Picture Example:
Download:
Product Description

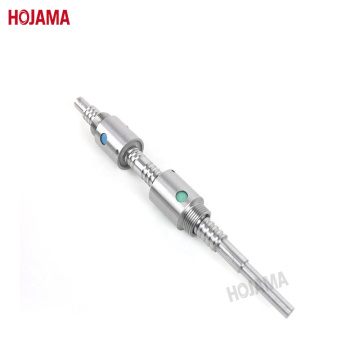

惭贰齿0406搁尝(笔3)——4mm Diameter Bi-directional Ball Screw
?
The bidirectional ball screw operates like a conventional ball screw. It features a threaded shaft and a nut, with a series of steel balls in between. As the screw shaft rotates, the steel balls circulate within the threads of both the shaft and the nut, thus enabling smooth and precise linear motion. However, what sets the Bi-directional Ball Screws apart from the conventional one is the design of its nut. The bidirectional ball screw nut incorporates two sets of ball tracks oriented in opposite directions, facilitating the movement of the nut in either direction along the shaft.
One of the major advantages of left and right-hand ball screws is their capability to deliver precise linear motion in both directions, making them perfect for applications demanding bidirectional movement. These ball screw assemblies are renowned for their high efficiency, remarkable accuracy, and long service life. They find common applications in numerous fields. They are widely used in CNC machines, robotics, automation, and aerospace.? As a reliable product, bidirectional ball screws and nuts offer excellent performance, ensuring smooth operation and precise positioning.?
?
In addition, if you would like to place an order for Lead Screws, linear guides, Linear Modules, or Ball Splines, you are welcome to consult us.
?

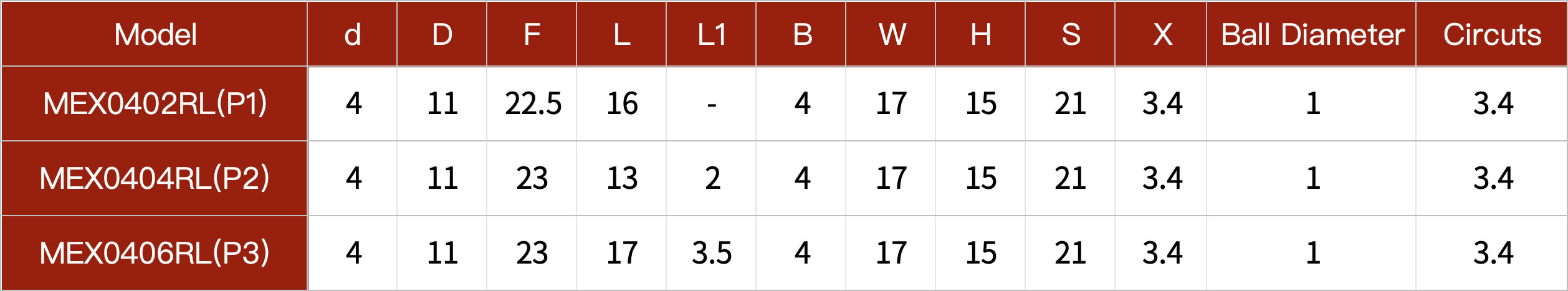

ball screw detail
?

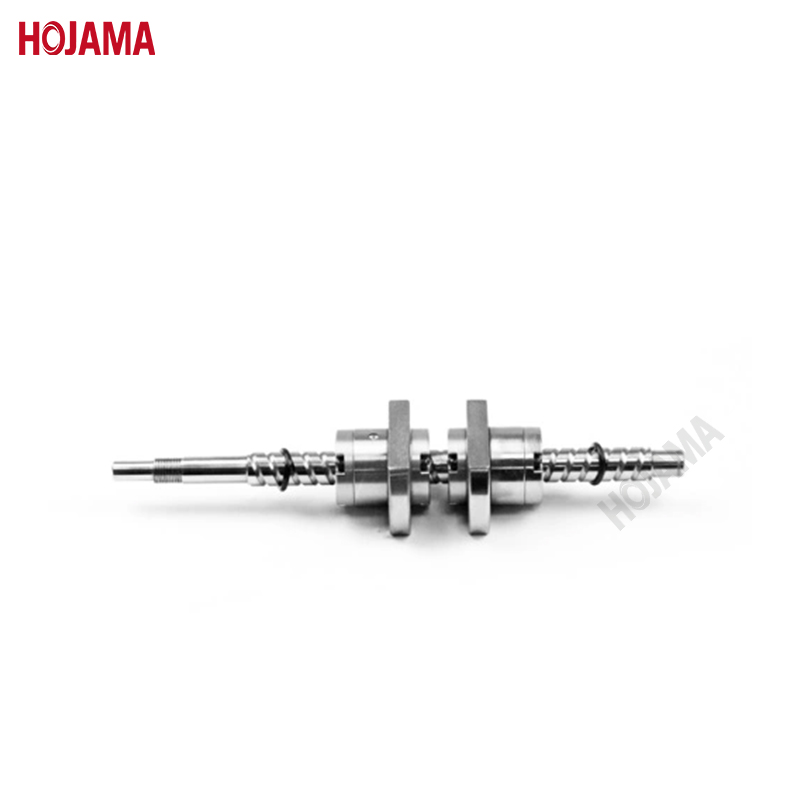

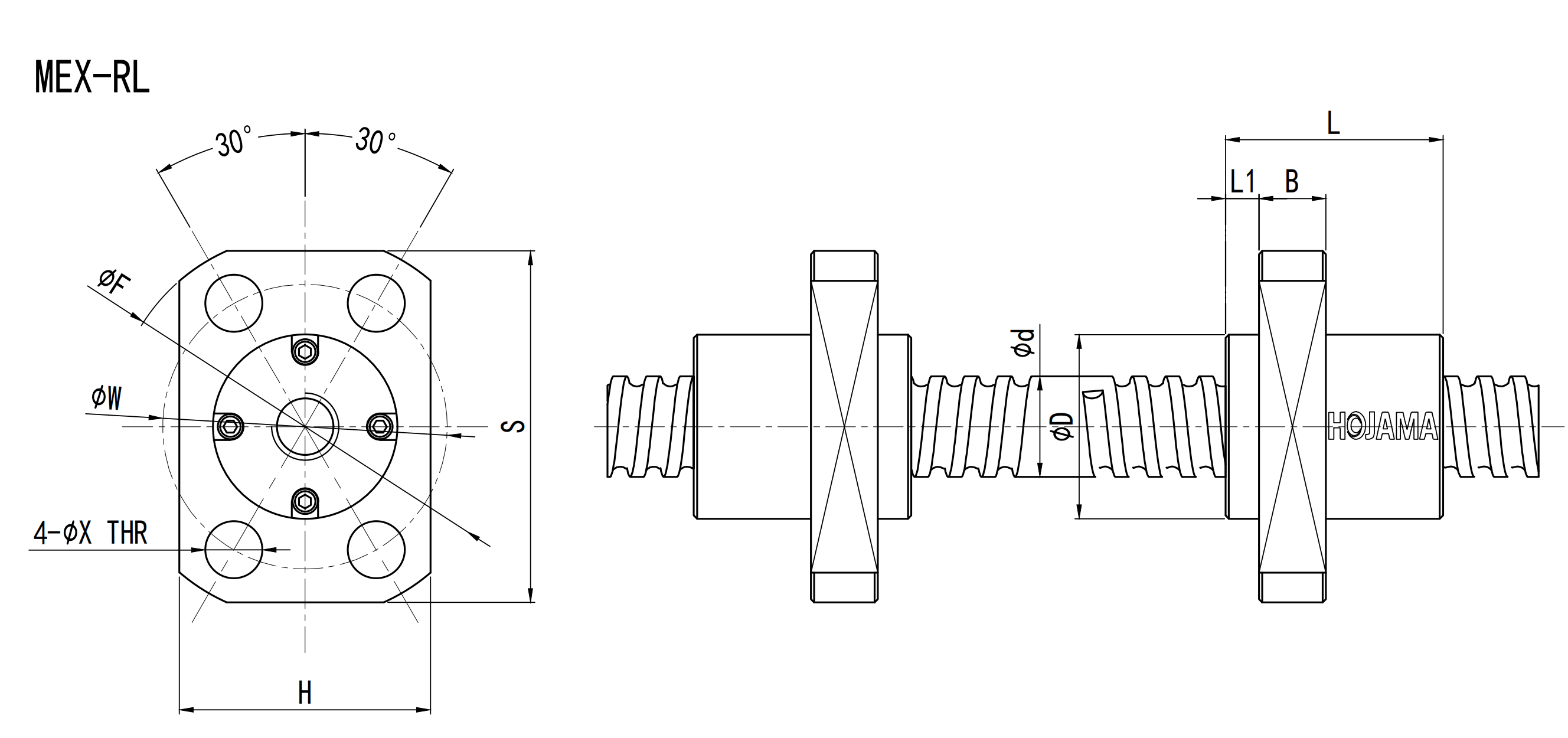

MEXRLBi directional ball screw

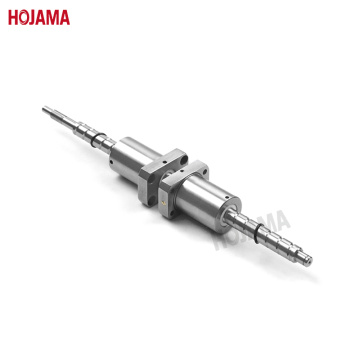

Twin-lead Ball Screws
?
customized ball screw shaft Ends
linear motion ball screw set-3
