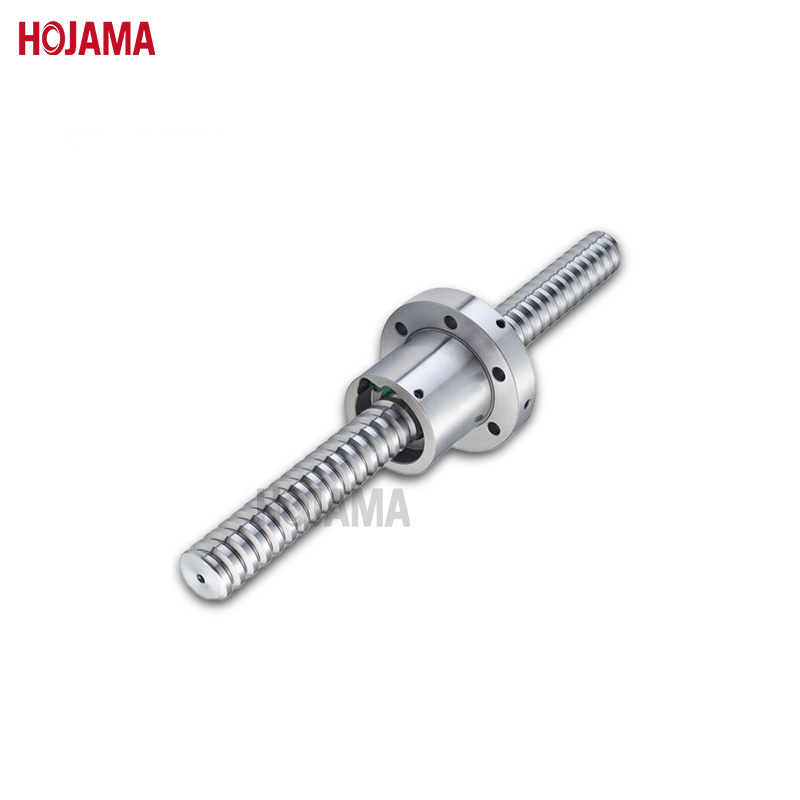

High-Accuracy Ball Screw Precision Ground Steel
High-Accuracy Ball Screw Precision Ground Steel

High-Accuracy Ball Screw Precision Ground Steel

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Dalian,Zhoushan
Contact Us

  • $19.99-199.99 /Piece/Pieces

Sample:
$200.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: G4005-4-326-C3

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Energy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Engine, Plc, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 90cm*10cm*10cm
Single gross weight: 4kg
Package Type: Wooden box
Picture Example:
Product Description
G4005-4-326-C3--40mm Diameter Ball Screw
Four Support Methods of Ball Screw Set
1. One End Fixed and One End Free
1) Simple structure, low axial stiffness, and critical speed, resulting in poor stability of the ball screw. Mostly used for short strokes and vertical transmission.
2) One end with combined angular contact bearings, and the other end is free.

2. One End Fixed and One End Supported
1) The most typical and commonly used installation method for ball screw mechanisms, suitable for medium-speed occasions requiring high stiffness and precision.
2) The support end has relatively lower rigidity.
3) One end with combined angular contact bearings, and the other end with deep groove ball bearings.

3. Both Ends Supported
1) Suitable for general occasions with medium speed, and low requirements for stiffness and precision. This form has a simple structure, small bearing rigidity, poor force condition, and is less commonly used.
2) Both ends are equipped with deep groove ball bearings.

4. Both Ends Fixed
1) Can bear high axial loads. The axial stiffness of the ball screw is about 4 times higher than that of the one-end fixed and one-end supported installation method. Suitable for high-speed rotation, high-precision occasions, and when the ball screw is long. This installation method also has disadvantages, such as a complex structure and high sensitivity to thermal deformation of the ball screw, which is used in machines requiring axial rigidity.
2) Used in machine tools with high rigidity requirements.
3) The most significant feature of this support method: The ball screw is pre-stretched to compensate for thermal deformation caused by frictional temperature rise during high-speed rotation.
4) Both ends are equipped with combined angular contact bearings (configured in DT-DB group installation).
?
If you want to know the actual price and lead time, please contact us with the product drawing.
ball screw by nook

G Series Precision Ground Ball ScrewG Precision ball screw

customized ball screw shaft Ends
Small Customized Ball Screw
