Precision CNC 40mm Diameter Ball Screw and Nut
Precision CNC 40mm Diameter Ball Screw and Nut

Precision CNC 40mm Diameter Ball Screw and Nut

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Dalian,Zhoushan
Contact Us

  • $19.99-199.99 /Piece/Pieces

Sample:
$171.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
Send Inquiry
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.: GD4005-4-515-586-C5

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Energy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Engine, Plc, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Overview
Supply Ability & Additional Information

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 90cm*10cm*10cm
Single gross weight: 4kg
Package Type: Wooden box
Picture Example:
Download:
Product Description

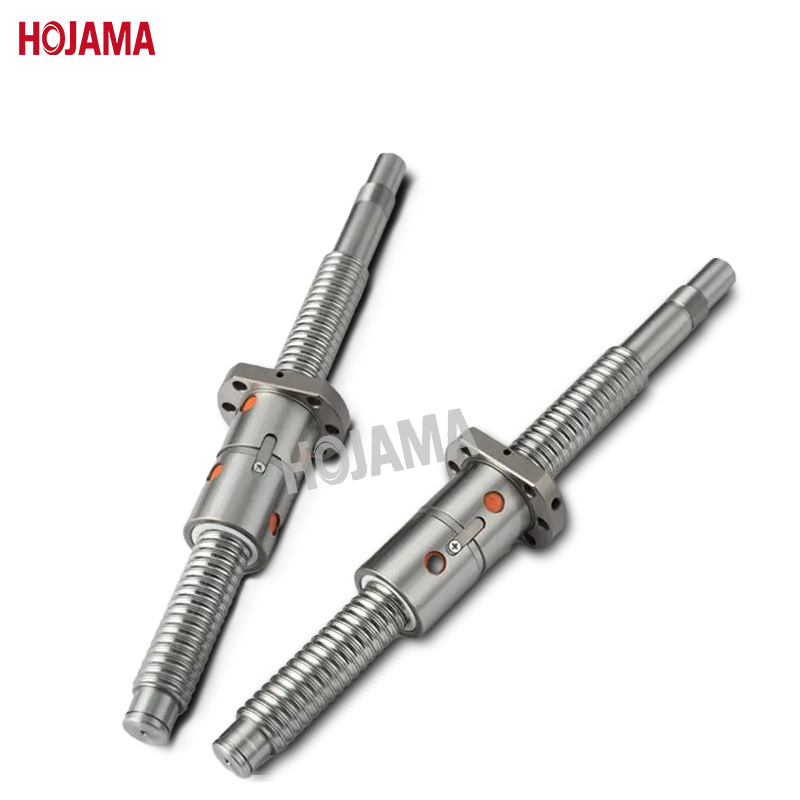

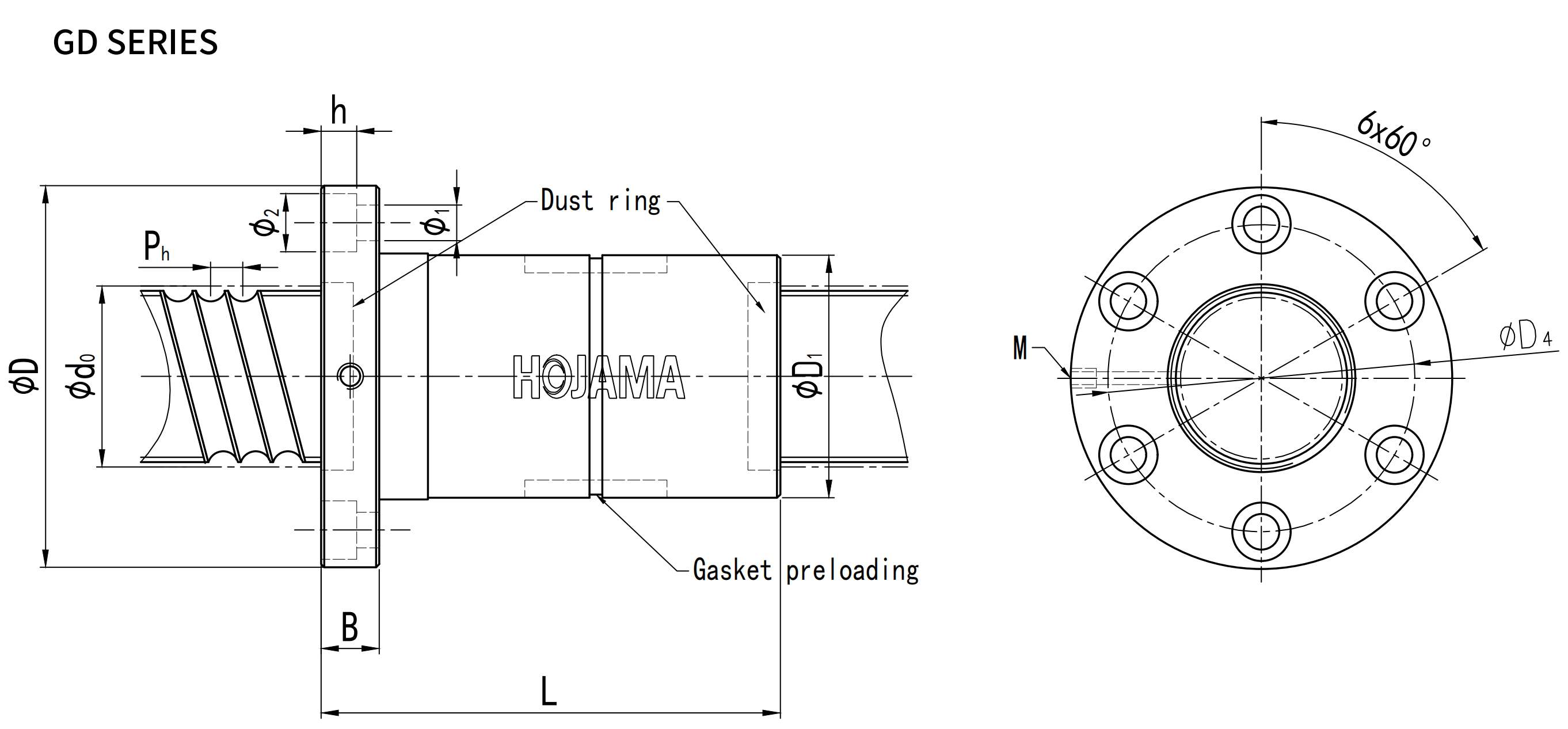

GD4005-4-515-586-C5--40mm Diameter Ball Screw

How to Measure Runout and Position Tolerance of Ball Screw Pairs:
1. Radial Runout of Bearing Block Relative to the Center Line of Ball Screw Groove
1) Place the ball screw in the same V-blocks on the bearing blocks at both ends.
2) Position a dial indicator vertically on the cylindrical surface of the ball nut.
3) Slowly rotate the ball screw shaft and record the dial indicator readings.
4) Measurements should be taken near both ends of the threaded section of the ball screw kit.
5) In some cases, this measurement is conducted using two center hole supports and directly on the bearing blocks.

2. Radial Runout of Journal Diameter Relative to Bearing Block
1) Place the ball screw in the same V-blocks on the bearing blocks at both ends.
2) Position a dial indicator perpendicular to the cylindrical surface of the journal.
3) Slowly rotate the ball screw shaft and record the dial indicator readings.

3. Axial Runout and Perpendicularity of Shaft Bearing Surface to Center Line of Bearing Block
1) Support the screw shaft at the center holes at both ends.
2) Position a dial indicator vertically on the end face of the journal.
3) Slowly rotate the ball screw shaft and record the dial indicator readings.
4) This method is identical to supporting the ballscrew shaft at the two bearing blocks, as the bearing blocks are ground relative to the two centers.

For the price of Precision Ball Screw, please consult us with the product drawing.
ball screw by nook
?
GD linear actuators ball screwGD drilling machine ball screw

customized ball screw shaft Ends
Utral-long Rolled Ball Screw
