$10.99-35.99 /Piece/Pieces
| Sample: |
$35.00 /Piece/Pieces, 1 Piece/Pieces (Max. Order)
|
| Selling Units: | Piece/Pieces |
|---|---|
| Single package size: | 30cm*10cm*6cm |
| Single gross weight: | 12kg |
| Package Type: | Wooden box |
| Picture Example: |
|

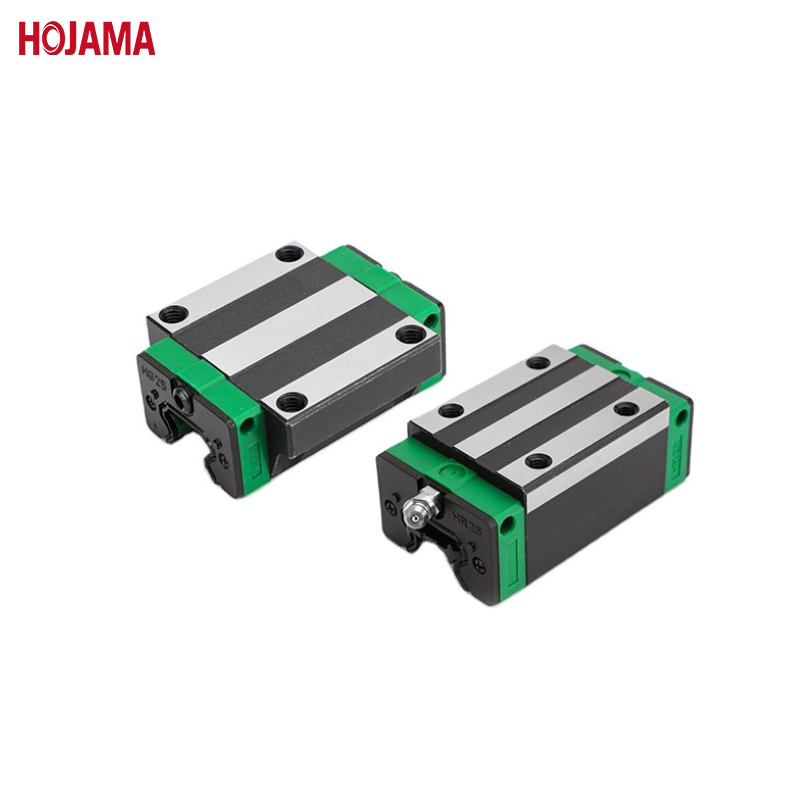

HGH25HA: HG Series Linear Guideways
?
The Linear Guide is primarily used for linear reciprocating motion and can handle a certain amount of torque, achieving high-precision linear movement even under heavy loads. The HG series linear guides feature a four-row circular-arc contact design and integrate an optimized structural design for ultra-heavy-duty precision linear motion. Compared to other linear guides, they offer enhanced load capacity and rigidity. The guides have four-direction equal load characteristics and automatic self-aligning functionality, which can compensate for installation surface errors and meet high-precision requirements.
?
Advantages of Linear Guideways:
?
1. Automatic Self-Alignment
?
The DF (45°-45°) circular arc groove design allows the guide block to adjust for installation surface deviations, ensuring precise and smooth motion.
?
2. Interchangeability
?
Due to precise manufacturing, guide dimensions are consistent. Blocks with retainers prevent steel ball loss, allowing rails and blocks to be ordered separately and stored efficiently.
?
3. High Rigidity in All Directions
?
The four-row circular arc groove and 45-degree ball contact provide strong load-bearing in all directions, with optional preload to increase rigidity.
?
Attention:
?
1. Please note that the prices displayed on this page are for reference only. For the actual price, please contact HOJAMA customer service or call [contact number] for the most accurate information.
?
2. Samples are provided upon request. Please allow 5-7 days for delivery.
?
