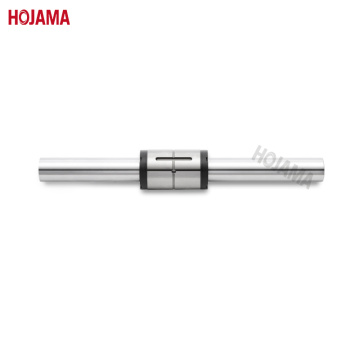

13mm Customized Ball Spline for Automatic Machinery
13mm Customized Ball Spline for Automatic Machinery

13mm Customized Ball Spline for Automatic Machinery

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Zhoushan,Dalian
  • $13.99-109.99 /Piece/Pieces

Sample:
$110.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.SLF013

BrandHOJAMA

Place Of OriginChina

StatusNew

Warranty1.5 years

Applicable IndustryCNC Machining Parts

Mechanical Test ReportProvided

Processing TechnologyGrinding

Overview
Supply Ability & Additional Information

PackagingWooden box

Productivity30000 sets/month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000 sets/month

CertificateISO9001:2015

PortShanghai,Zhoushan,Dalian

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 45cm*5cm*5cm
Single gross weight: 0.6kg
Package Type: Wooden box
Picture Example:
Product Description

厂尝贵013——13mm Diameter Ball Spline

?

I. Overview

Ball Splines serve as linear motion elements by utilizing the rotational motion of balls. They find extensive applications in various fields, such as robotics and transportation equipment.

?

II. Structure and Advantages

The ball spline is composed of two main parts: a spline shaft equipped with raceway grooves and a spline nut. The spline nut itself comprises an outer cylinder (which serves as the main body), a retainer, side rings, and ball elements. This design and manufacturing approach aims to ensure reliable and smooth motion throughout its operation.

?

III. High Load Capacity and Long Life

The raceway grooves are precisely machined to have a radius nearly identical to that of the balls. This design feature leads to a significantly large contact area between the balls and the grooves, thereby endowing the ball splines with a strong load-bearing capacity. Consequently, they exhibit an extended service life, making them suitable for long-term and heavy-duty applications.

?

IV. Various Configurations

Spline Shaft Diameters: There is a wide selection of spline shaft diameters, ranging from a minimum of 6mm to a maximum of 50mm.

Nut Types: There are four distinct types of nuts available:

Cylindrical type (SLT/SLF)

Flange type (SOT/SOF)

?

We can also provide ball screws, Lead Screws, linear guides, and Linear Modules. Once you send the product drawing to us, we will provide you with a superior-quality product and exemplary service.

?

?

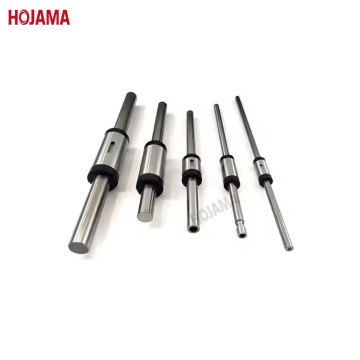

ball spline
?
SLF ball splines
SLF ball spline
