$7.99-99.99 /Piece/Pieces
| Sample: |
$100.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
|
| Selling Units: | Piece/Pieces |
|---|---|
| Single package size: | 40cm*5cm*5cm |
| Single gross weight: | 0.5kg |
| Package Type: | Wooden box |
| Picture Example: |
|

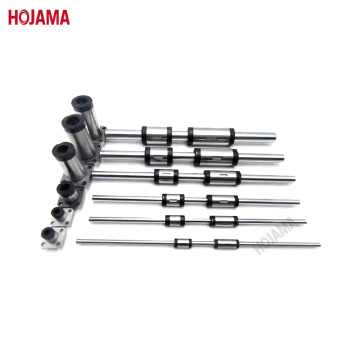

厂翱罢010罢4——10mm Diameter Ball Spline
?

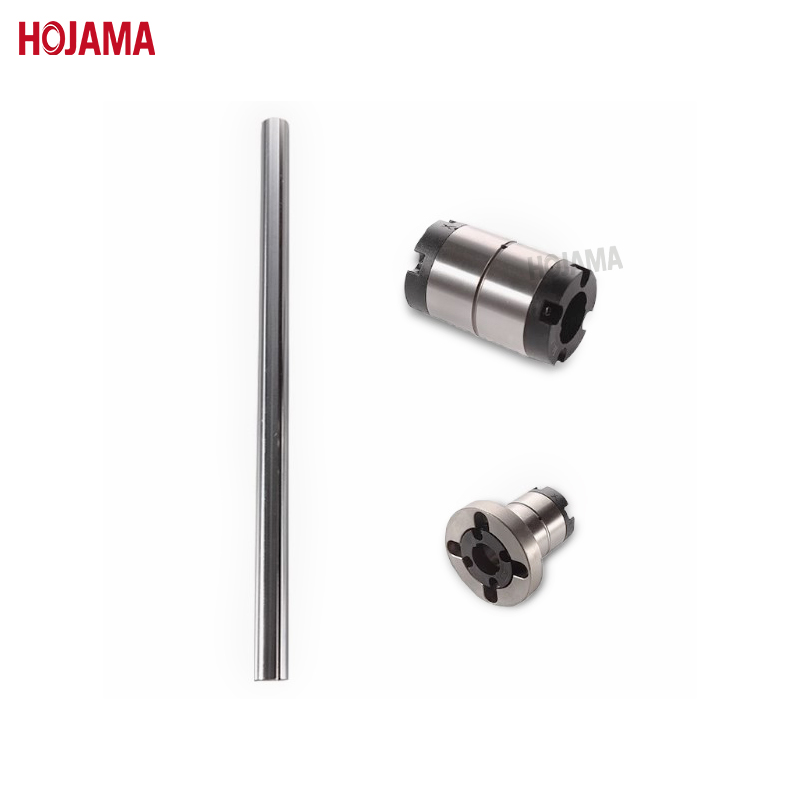

Our high-precision linear ball spline is a revolutionary product in the automation field. It is also known as ball bearing splines or recirculating Ball Splines, consisting of a screw spline and a nut integrated with steel balls and a ball return mechanism, such as return tubes or return caps.
?
Main Features of Hojama Ball Splines:
Exceptional Load-Bearing Capacity: The high-accuracy ball spline uses balls installed in the outer cylinder of the spline shaft to roll smoothly in the precision-ground rolling groove, transmitting torque. With a unique contact point design and a large contact angle (40°), it has high sensitivity and significantly increases the load capacity. When used instead of linear ball bushings, under the same shaft diameter, its rated load is ten times that of linear bushings.
?
High Precision: The accuracy can reach up to Grade N(Normal), H(High), and P(Precision), moreover the ball splines also can be customized.
?
Wide Application: Our high-performance ball spline suits various environments, including those with excessive vibration and shock loads, high positioning accuracy requirements, and high-speed motion performance. It is also widely used in machine tools, robots, precision assembly equipment, semiconductor manufacturing steppers, aircraft, missiles, and automobile power steering systems.
?
Tips:
Besides the ball screws, Hojama products also include ball screws, Lead Screws, linear guides, and Linear Modules... Welcome to consult us with product price and lead time!
?
