Customized Linear Ball Screw Guide Linear Module
Customized Linear Ball Screw Guide Linear Module

Customized Linear Ball Screw Guide Linear Module

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 1 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Zhoushan,Dalian
  • $69.99-499.99 /Piece/Pieces

Sample:
$500.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)

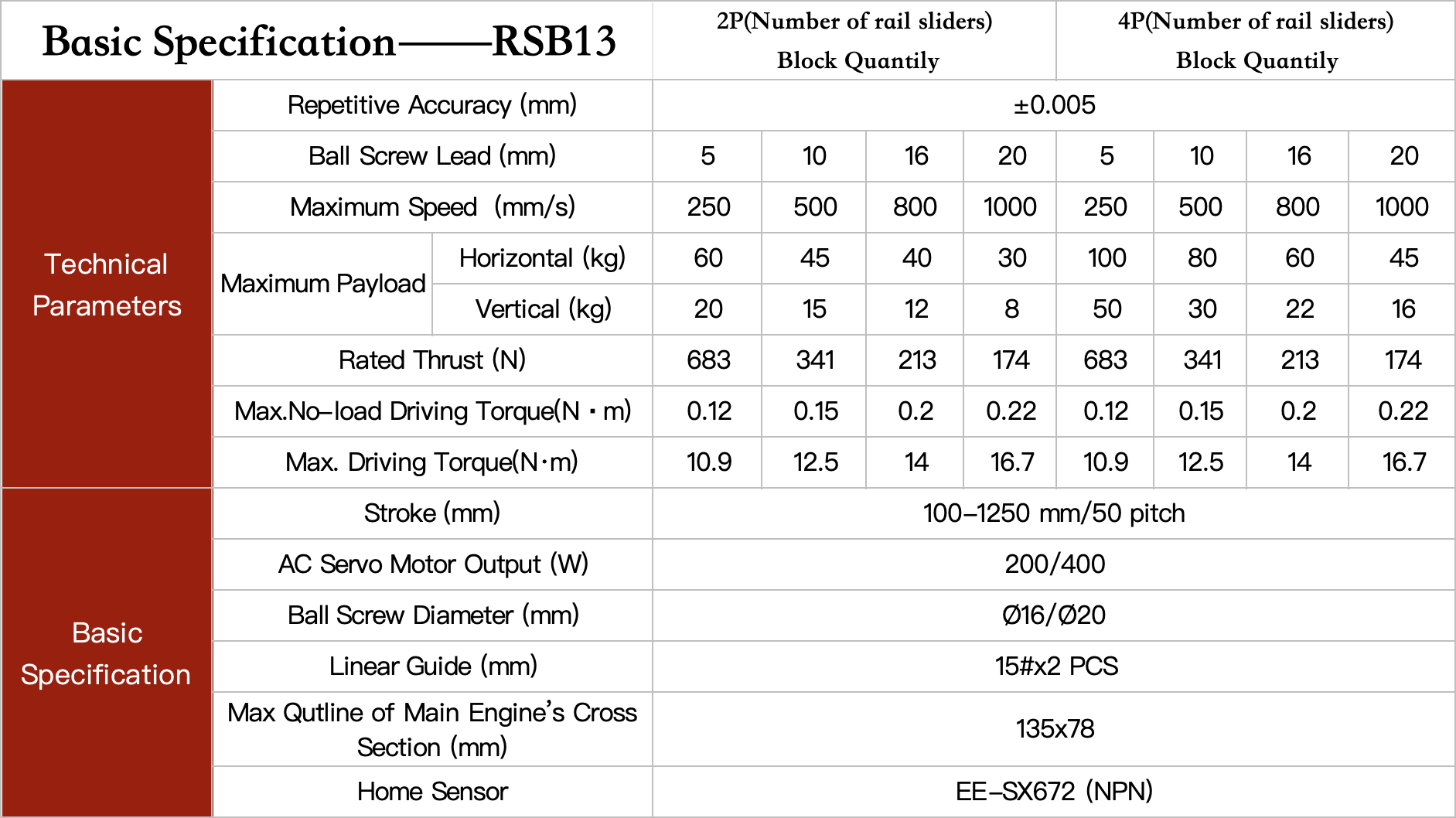

PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.RSB13-2P

BrandHOJAMA

Place Of OriginChina

StatusNew

Warranty Period1.5 Years

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Selling PointHigh-Accuracy

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts

Applicable IndustryMachinery Repair Shops, Manufacturing Plant, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)None

Overview
Supply Ability & Additional Information

PackagingWooden box

Productivity30000 sets/Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000 sets/Month

CertificateISO9001:2015

PortShanghai,Zhoushan,Dalian

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 55cm*10cm*10cm
Single gross weight: 3kg
Package Type: Wooden box
Picture Example:
Product Description
As a key component in the field of industrial automation, Hojama screw linear module has many remarkable advantages.
?
1. In terms of detection, functions such as positioning accuracy, repeatability accuracy, and travel parallelism are easy to detect, providing a strong guarantee for the precision of equipment operation.
?
2. The functional design is highly diversified. It skillfully integrates the ball screw for driving and the Linear Guide. It can not only provide precise linear motion but also flexibly match various multi-functional accessories.?
?
3. In terms of assembly and maintenance, the assembly process of these Linear Modules is simple and easy to understand. Ordinary assembly personnel can easily complete the assembly without the need for professional experts. At the same time, the good dust-proof and lubrication designs greatly reduce the maintenance difficulty. Even when the machine is scrapped, it has a high recycling value, effectively saving costs.
?
4. Its accuracy and rigidity are excellent. Through in-depth analysis of the deformation of the steel ball contact position under loads in all directions, it can be known that this precision linear module has the characteristics of high accuracy and high rigidity. The optimized structural design by the finite element method achieves the best ratio of rigidity to weight, ensuring stable operation in high-intensity working environments and escorting your production efficiency.

Additionally, we can also provide ball screws, Ball Splines, Lead Screws, and Linear Guideways...... Welcome to contact us!
?

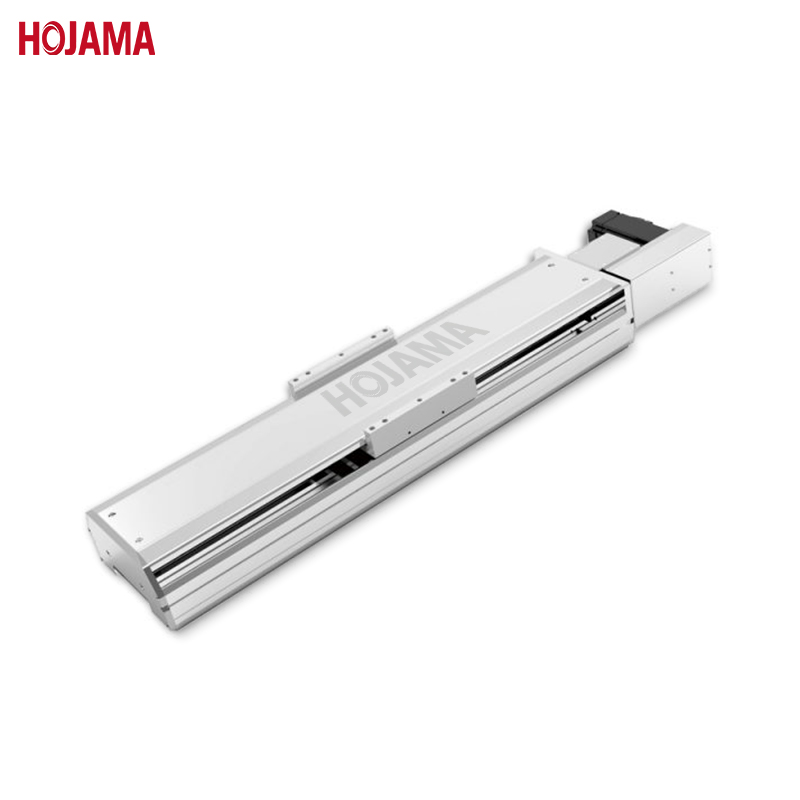

600mm screw linear module
?

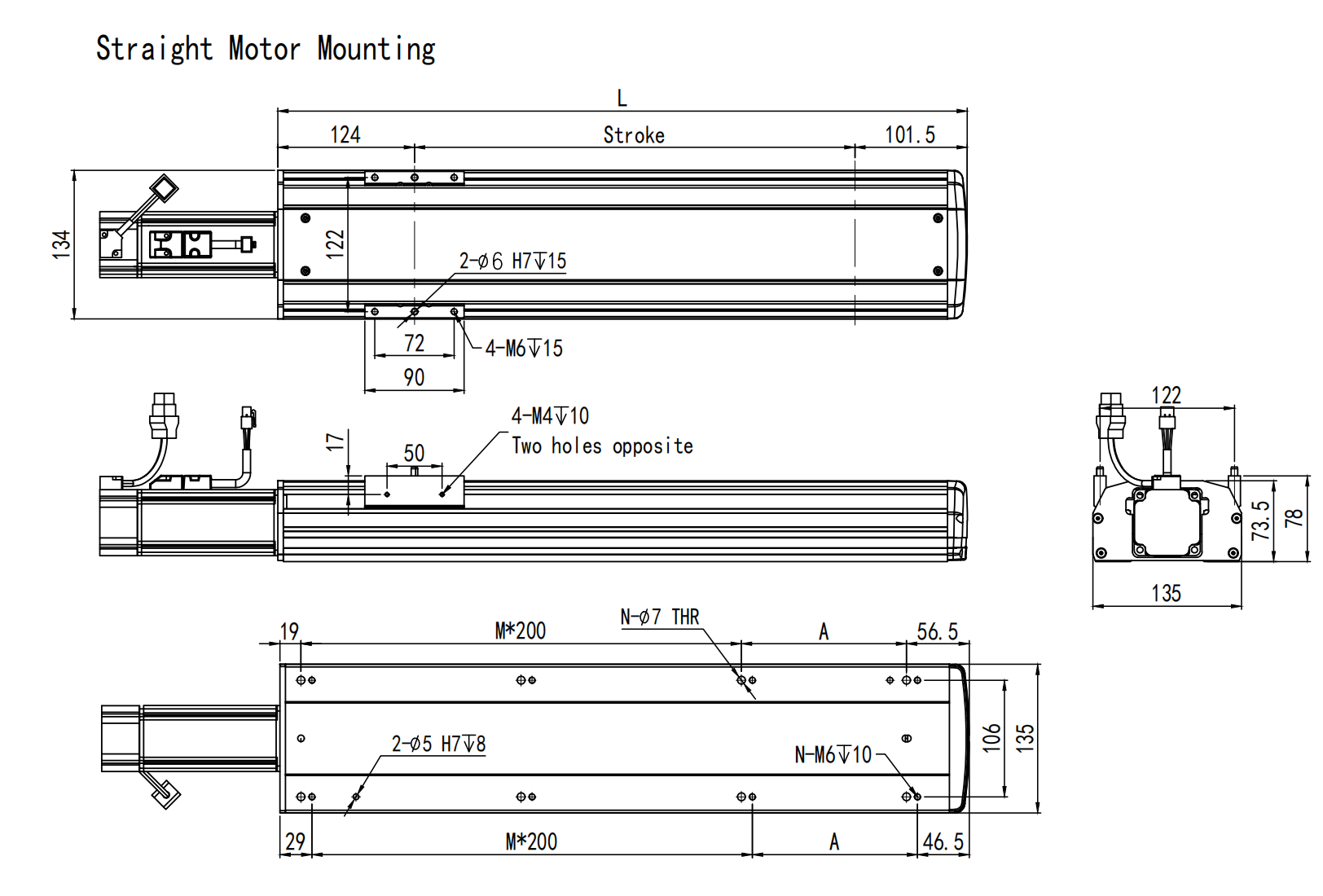

200mm linear module straight motor mounting300mm linear module direct mount.pic
?
150mm precision ball screw linear guides module

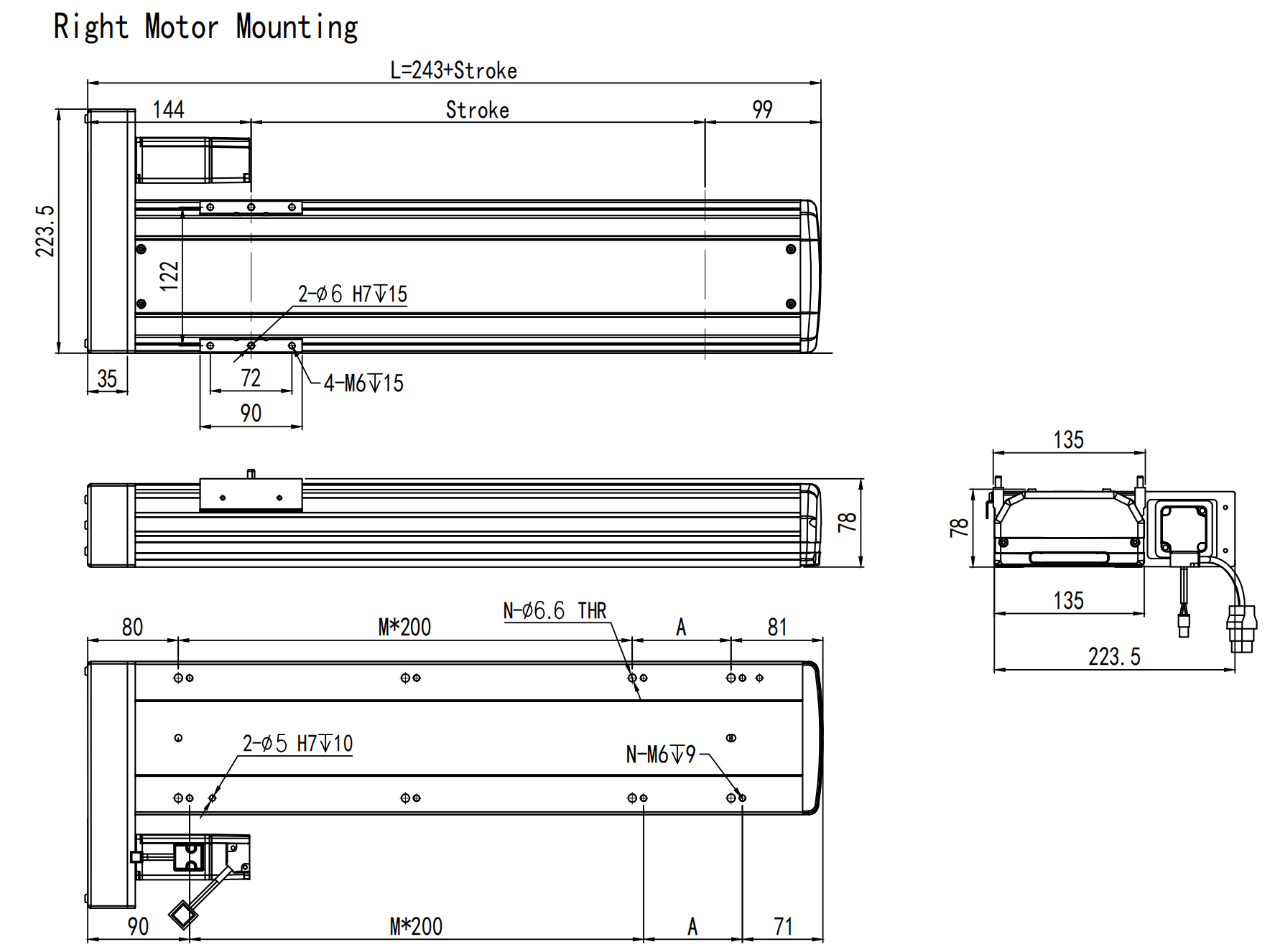

300mm linear module right:left:down mount.pic

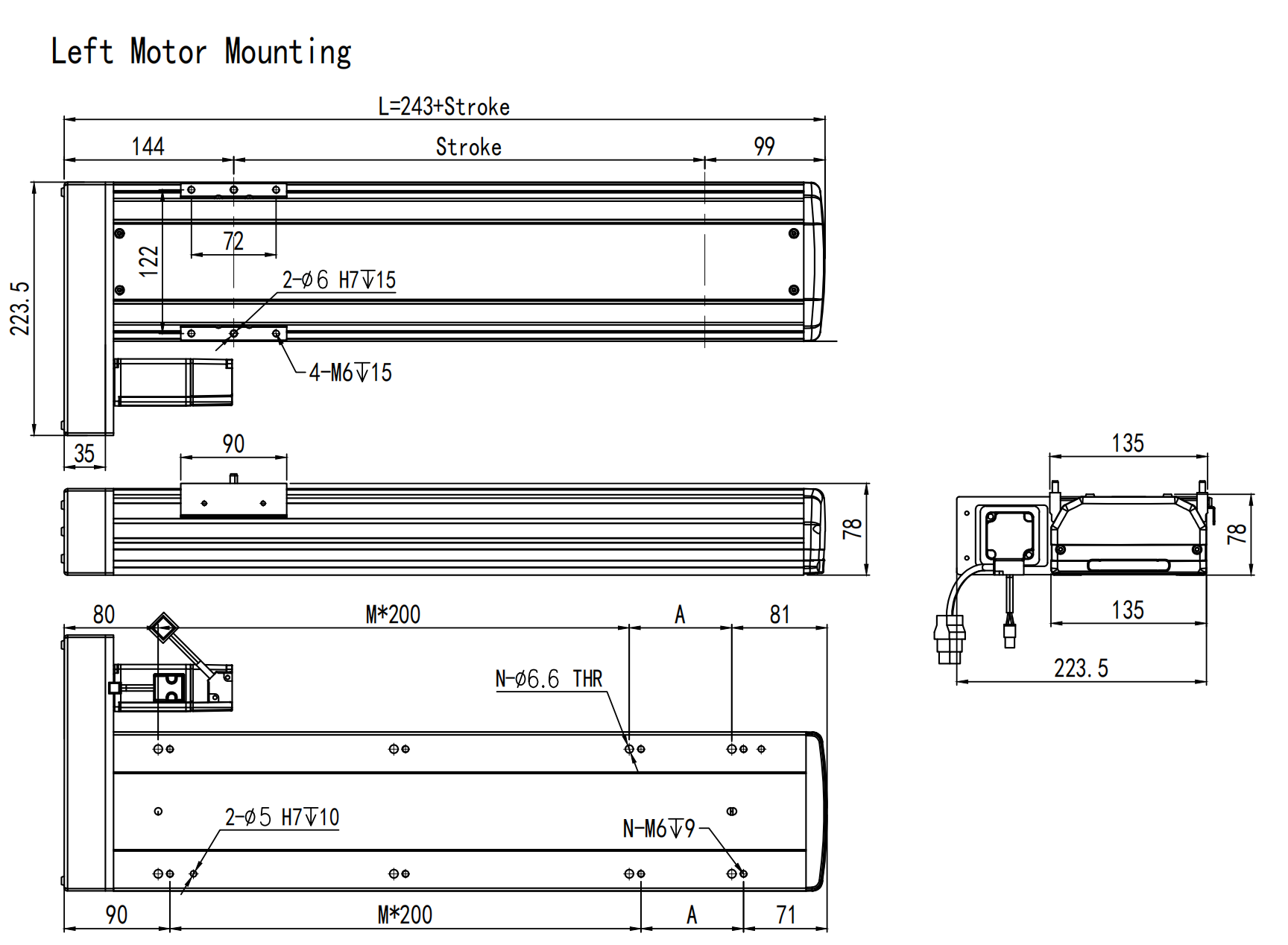

300mm linear module left motor mounting
300mm linear module right:left:down mount.pic
?

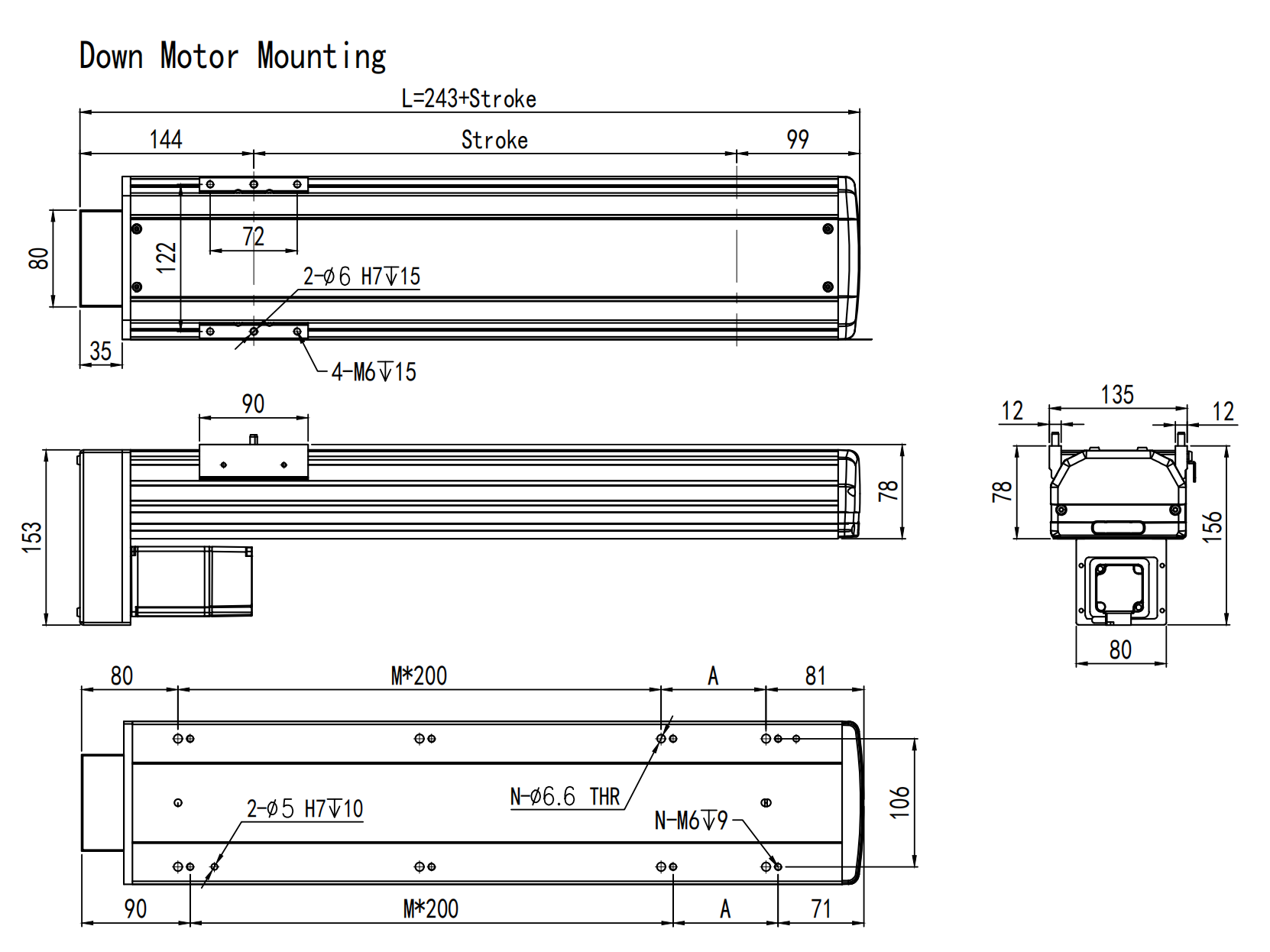

300mm linear module down motor mounting300mm linear module right:left:down mount.pic
