12mm Bi Directional Ball Screws for CNC Machinery
12mm Bi Directional Ball Screws for CNC Machinery

12mm Bi Directional Ball Screws for CNC Machinery

  • Payment Type: L/C,T/T,D/P
  • Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
  • Min. Order: 5 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shanghai,Dalian,Zhoushan
  • $10.99-170.99 /Piece/Pieces

Sample:
$171.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
PRODUCT ATTRIBUTES
Overview
Product Attributes

Model No.MEF1205RL

BrandHOJAMA

StatusNew

Warranty Period1.5 Years

Applicable IndustryEnergy &Amp; Mining, Other, Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)None

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsEngine, Plc, Bearing, Gearbox, Motor, Gear, Pump

Processing TechnologyMilled Thread

Place Of OriginChina

Overview
Supply Ability & Additional Information

PackagingWooden box

Productivity30000 sets/month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability30000 sets/month

CertificateISO9001:2015

PortShanghai,Dalian,Zhoushan

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES

Packaging & Delivery
Selling Units: Piece/Pieces
Single package size: 60cm*6cm*6cm
Single gross weight: 1.3kg
Package Type: Wooden box
Picture Example:
Download:
Product Description
?

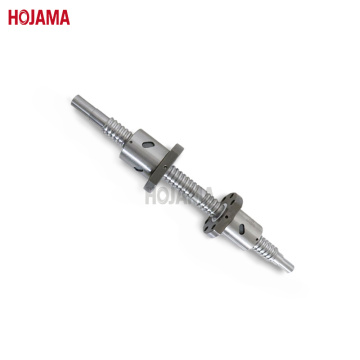

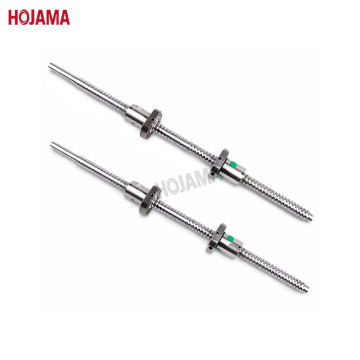

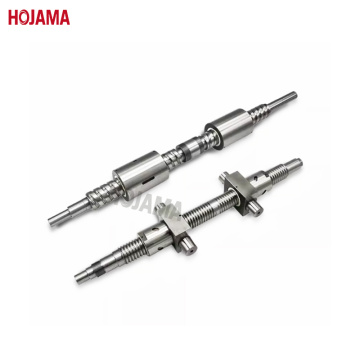

The precision Bi-directional Ball Screw is a Precision Ball Screw pair that enables precise left-right opening, centering, and positioning through a single shaft.
?
Precision Level: Our Bi-directional Ball Screws adopt C3-grade and C5-grade precision-ground ball screws, ensuring high-accuracy operation in various applications.
?

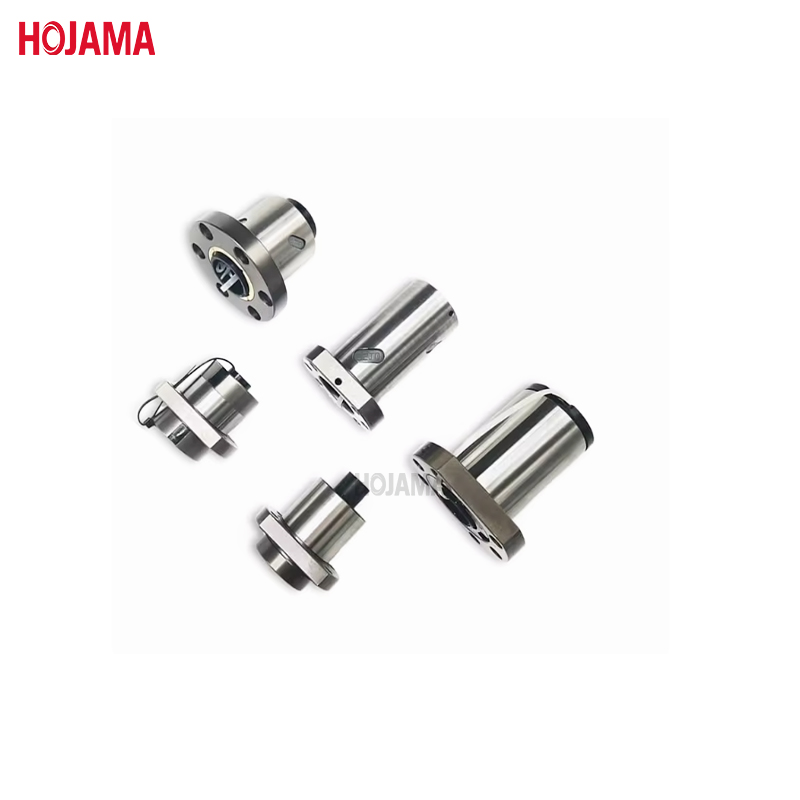

Customization Service: We can customize the shape and size of the nut according to customers' requirements. This allows for a high degree of flexibility in meeting the specific needs of different projects.
?
Performance Advantage: Currently, we use metal deflectors. Compared with plastic deflectors, metal deflectors can further improve the lifespan, stability, and smoothness of precision Miniature Ball Screws. Moreover, when combined with stainless-steel screws, nuts, and balls, it can meet the requirements of high-temperature resistance and corrosion resistance, making it suitable for harsh working environments.
?

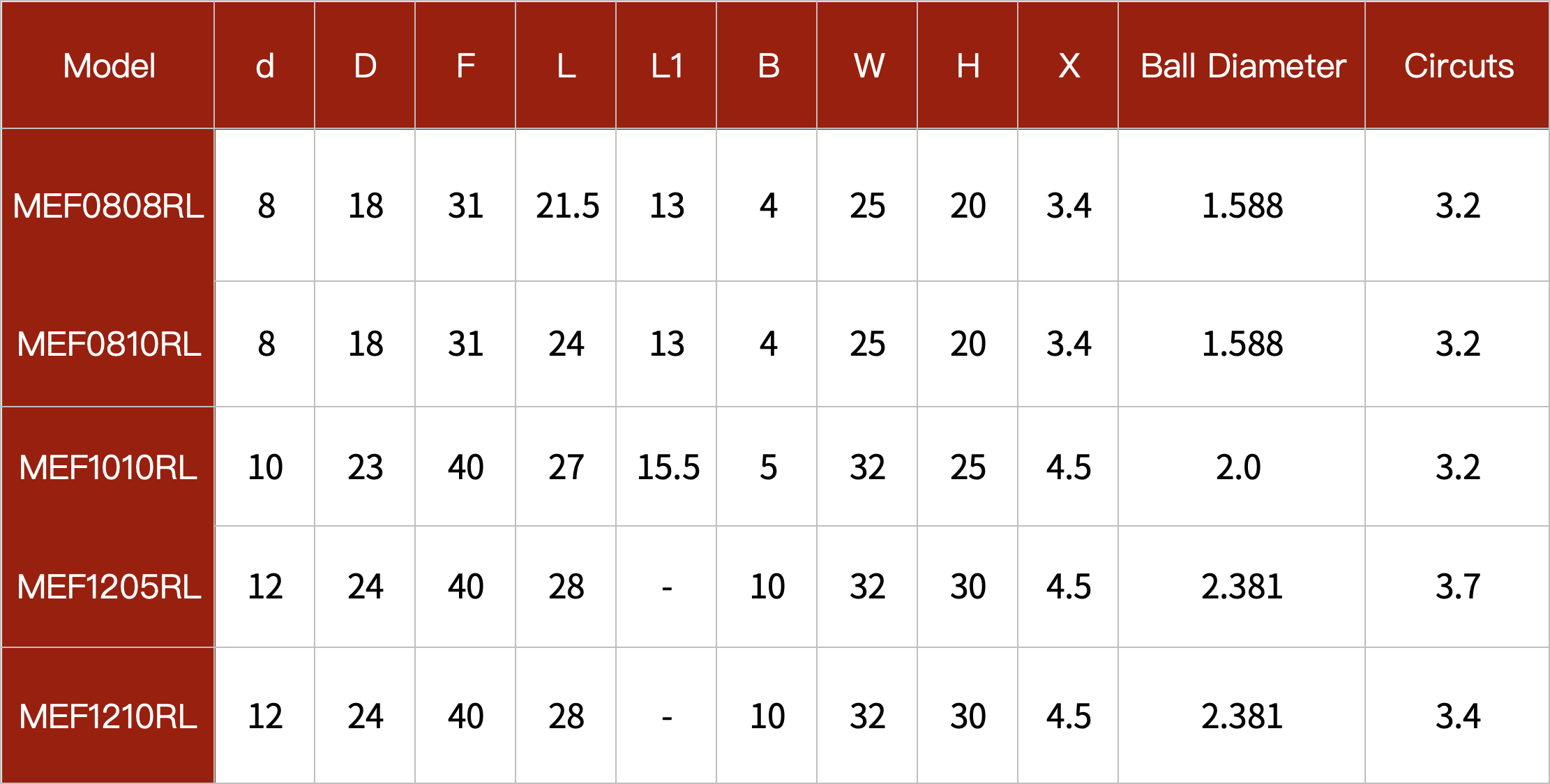

Specification Parameters: The diameter of the precision miniature screw pair ranges from ¢4 - 16mm, and the lead ranges from 1mm - 16mm. The thread direction can be right-handed, left-handed, or a combination of right-left-handed (integrated), providing a wide range of choices for different mechanical designs.
?
crew detail
?

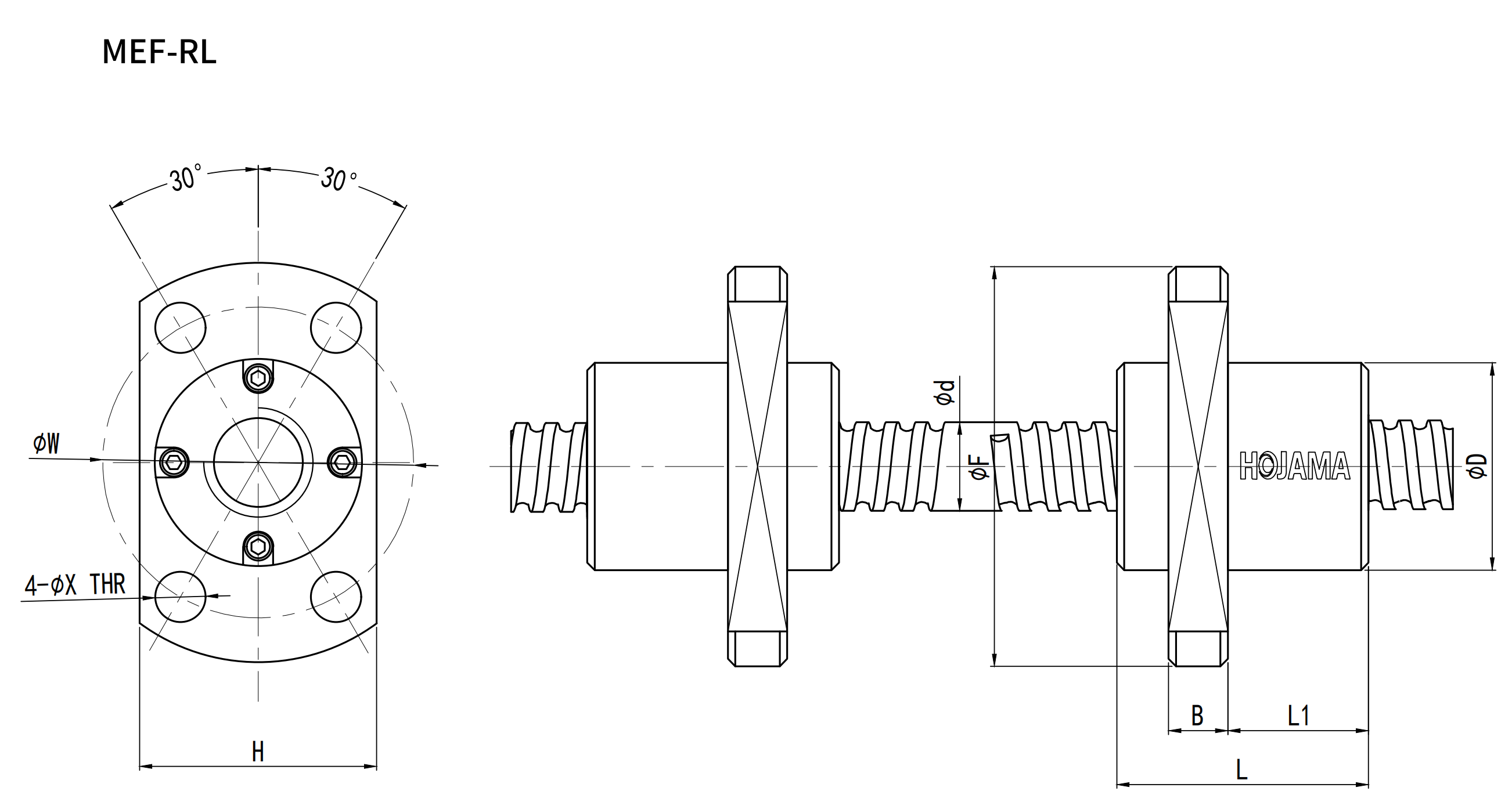

MEF bi direction ball screw and nutMEF bi direction ball screws and nuts
?
Typical Journal Ends
