$12.99-120.99 /Piece/Pieces
| Sample: |
$990.00 /Piece/Pieces, 10 Piece/Pieces (Max. Order)
|
| Selling Units: | Piece/Pieces |
|---|---|
| Single package size: | 32cm*5cm*5cm |
| Single gross weight: | 0.1kg |
| Package Type: | Wooden box |
| Picture Example: |
|
| Download: |
|

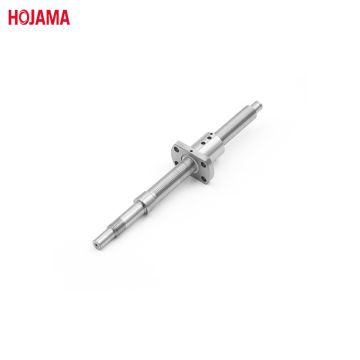

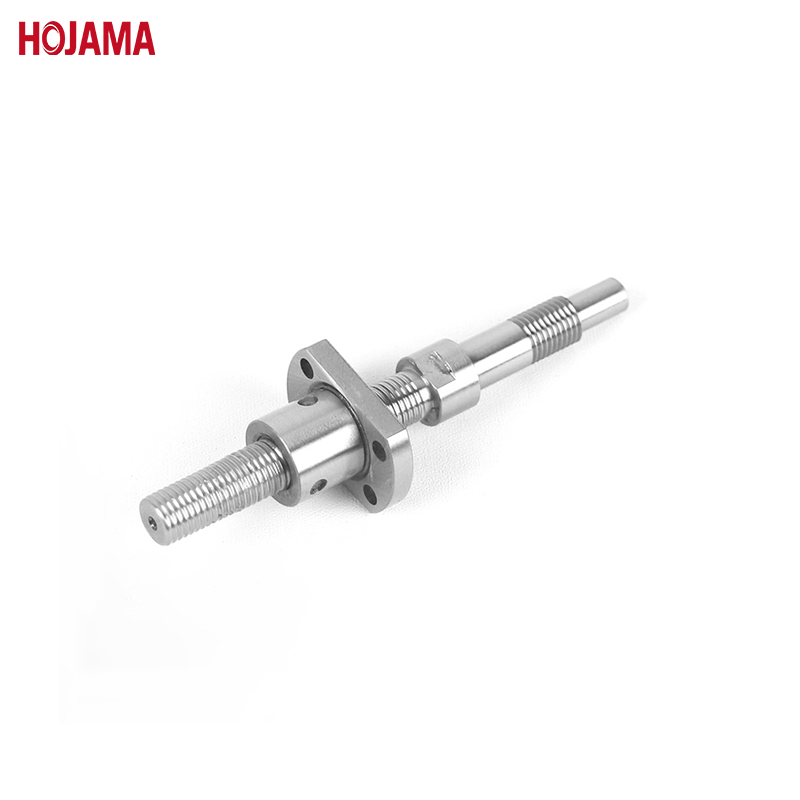

A high-precision Miniature Ball Screw consists of a screw shaft, ball nut, and steel balls. It effectively converts rotary motion into linear motion. Known for its high precision, reversibility, and efficiency, our low-friction bidirectional ball screw is a popular choice in industrial machinery and precision instruments.
?

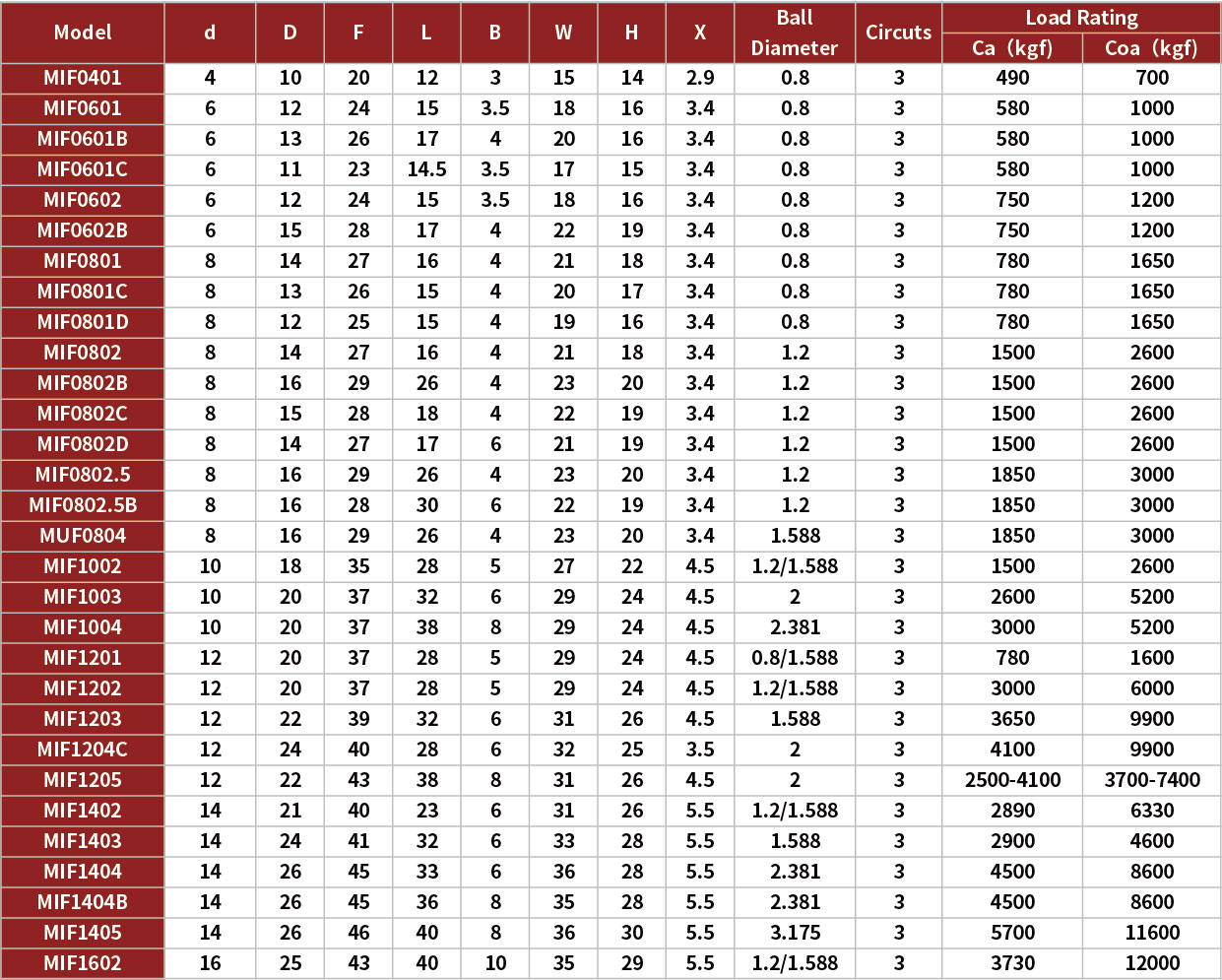

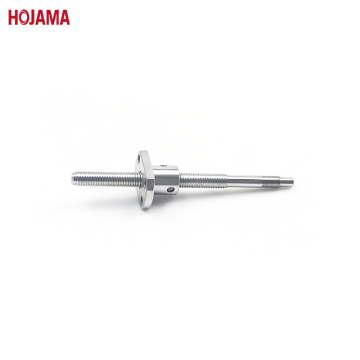

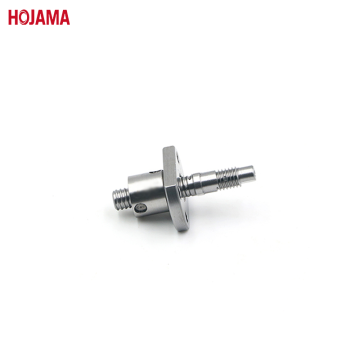

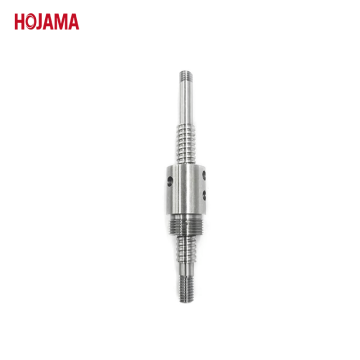

MIF0601: The 6mm Diameter Ball Screw with 1mm pitch
Thread type: Standard Nut
Cycle Mode: Floating deflector

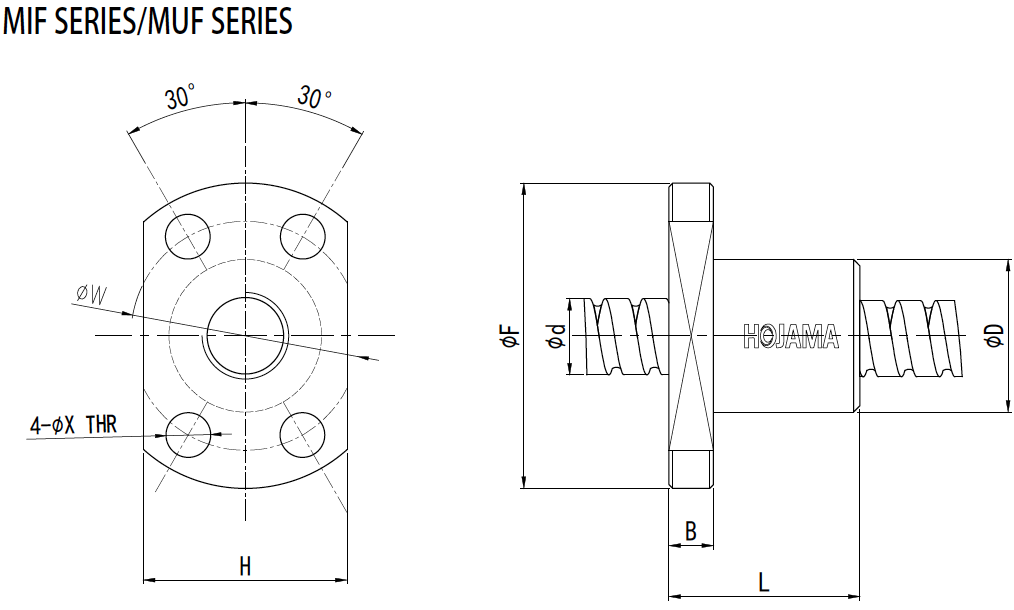

Nut shape: Round nut with flange
?
Miniature Ball Screws Application:
?
1. CNC machine tools: precise and smooth motion control
?
2. Automation equipment: precise motion in robotics and assembly systems
?
3. Measuring instruments: precise positioning and low-friction measurement
?
4. Medical equipment: precise positioning in surgical robots and diagnostics
?
5. Aerospace: reliable motion control
?
6. Renewable Energy: precise adjustment of panel angles
?
HOJAMA Ball Screws are built on years of accumulated expertise. From materials and heat treatment to manufacturing, inspection, and shipping, each stage is controlled by a rigorous quality assurance system. And before you order, you need to know:
1.?Sample prices are based on drawing specifications (we accept both CAD and 3D) and order quantity. Don't hesitate to get in touch with HOJAMA for details.
2. Delivery time is approximately 15-25 days. Please get in touch with HOJAMA for the exact time.
3. You are welcome to request samples for testing and evaluation.
?
